AE1742B11703

Overview

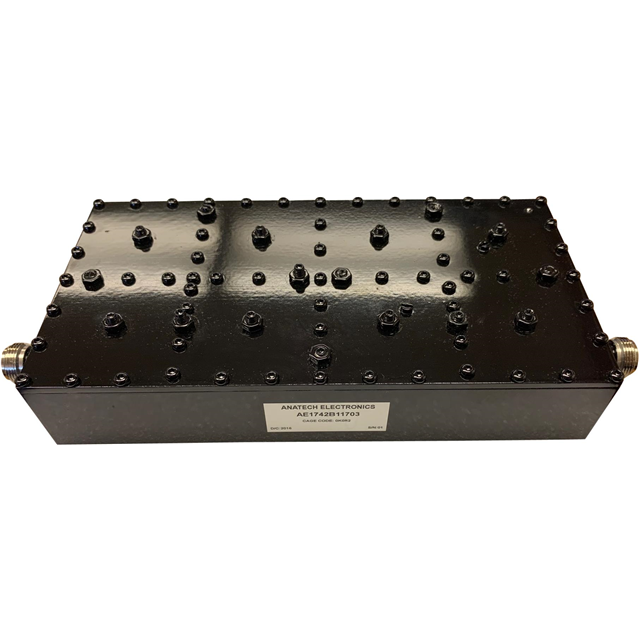

The AE1742B11703 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 1.7425 GHz and features a bandwidth of 5 MHz. The component exhibits an insertion loss of 2.5 dB. Designed as a module, it serves as a specialized radio frequency filtering solution for precise signal selection within microwave applications.

Feature Summary

• Cavity construction for stable RF performance
• Band pass filtering capability at 1.7425 GHz
• Module form factor for integration

Applications

• Radio frequency signal processing
• Microwave communication systems
• Precision frequency tuning applications

Procurement Notes

Verify the exact part number AE1742B11703 against official Anatech Electronics documentation to ensure correct specifications. Confirm that the required center frequency of 1.7425 GHz and bandwidth parameters match your system design requirements before procurement.

Selection Notes

Select this component when a fixed center frequency of 1.7425 GHz is required. Ensure the 5 MHz bandwidth and 2.5 dB insertion loss meet the system's signal integrity needs. Consider the module package type for physical integration constraints in the RF chain.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. This model belongs to their cavity band pass filter series, designed for applications requiring high selectivity and stability at specific microwave frequencies, supporting industrial and communication infrastructure.

Replacement Considerations

Cross-reference with other Anatech models offering similar center frequencies. Verify mechanical dimensions and connector types for compatibility. No direct substitute part numbers are publicly confirmed without specific manufacturer equivalence data.
