Product Detailed Parameters
- Description：RF FILTER LOWPASS 174MHZ TNC
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：174MHz (Cutoff)
- Bandwidth：-
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：1dB
- Mounting Type：Chassis Mount
- Package / Case：TNC In-Line Module
- Size / Dimension：4.000" L x 1.250" W (101.60mm x 31.75mm)
- Height (Max)：0.750" (19.05mm)
Download product information
Overview

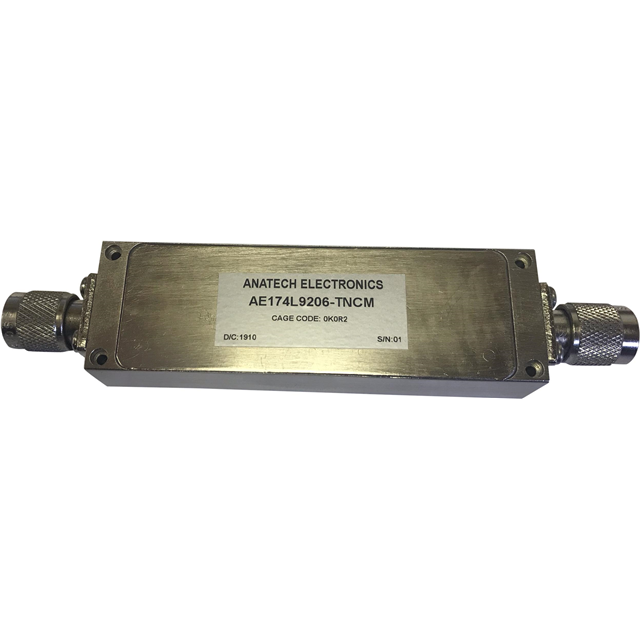

The AE174L9206-TNCM is a high-power LC low-pass RF filter manufactured by Anatech Electronics Inc. It features a DC to 174 MHz frequency range with a 174 MHz cutoff frequency. The component utilizes TNC connectors for in-line module integration. Key electrical specifications include a maximum insertion loss of 1.0 dB within the passband and a minimum attenuation of 10 dB, with specific rejection of 40 dB at frequencies between 252-840 MHz.
Feature Summary
- High power handling capability suitable for demanding RF environments
- LC topology design for effective signal filtering
- TNC connector interface for secure in-line installation
Applications
- RF signal conditioning in communication systems
- Harmonic suppression in transmitter outputs
- Interference mitigation in test and measurement equipment
Procurement Notes
Verify the exact part number suffix against manufacturer documentation to confirm connector type and tolerance specifications. Ensure compatibility with system impedance requirements before procurement. Cross-reference datasheet revisions to confirm current manufacturing status and lead time availability through authorized channels.
Selection Notes
Select this component when a 174 MHz cutoff frequency is required for low-pass filtering applications. Consider the TNC interface for mechanical compatibility. Evaluate power handling requirements against the LC design capabilities. Verify insertion loss constraints fit within the system budget.
Part Context
This component belongs to Anatech Electronics' series of high-power LC low-pass filters. These components are designed for robust RF performance in industrial and commercial applications. The series offers various cutoff frequencies and connector options to suit different system architectures.
Replacement Considerations
Consult official substitution lists for equivalent models with matching cutoff frequencies and connector types. Verify that alternative components meet the same power handling and attenuation specifications.
