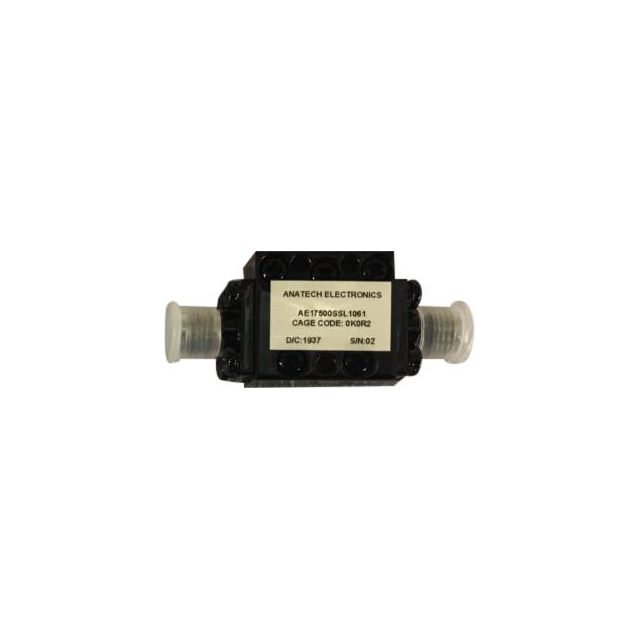

AE17500SSL1061

$637.50

Description：RF FILTER LOWPASS 17.5GHZ MODULE
Series：-
Mfr：Anatech Electronics Inc.
Package：Box

SKU:85fda050376a Category: RF Filters Brand: Anatech Electronics Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER LOWPASS 17.5GHZ MODULE
Series：-
Mfr：Anatech Electronics Inc.
Package：Box
Frequency：17.5GHz (Cutoff)
Bandwidth：-
Filter Type：Low Pass
Ripple：-
Insertion Loss：3dB
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Size / Dimension：0.709" L x 0.669" W (18.00mm x 17.00mm)
Height (Max)：0.394" (10.00mm)

Download product information

AE17500SSL1061

Overview

The AE17500SSL1061 is a suspended stripline low pass RF filter manufactured by Anatech Electronics Inc. It features SMA connectors and operates with a cutoff frequency of 17.5GHz. The pass band extends from DC to 17.5GHz, maintaining an insertion loss of ≤1.0dB within the DC to 16.8GHz range. This component is designed for high-frequency applications requiring precise signal filtering in microwave systems.

Feature Summary

Suspended stripline construction for stable RF performance
Low pass filter topology with defined cutoff characteristics
Integrated SMA connectors for standard interfacing

Applications

Microwave communication systems
RF test and measurement equipment
Military radar subsystems

Procurement Notes

Verify the specific datasheet version for the AE17500SSL1061 to confirm exact electrical tolerances and connector specifications before integration. Ensure compatibility with system impedance requirements. Check for any recent manufacturing updates that may affect physical dimensions or material composition. Confirm RoHS compliance status if required by your supply chain standards.

Selection Notes

Select this component when a low pass filter with a 17.5GHz cutoff is required. The suspended stripline design offers distinct advantages over planar technologies in terms of power handling and Q-factor. Verify that the SMA interface matches your existing board layout or cable assemblies. Consider thermal management needs as suspended structures may have different mounting requirements compared to surface-mount alternatives.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters for military and commercial sectors. Founded in 1990, the company produces both standard and custom filter solutions. The AE series represents their suspended stripline technology line, known for high performance in demanding environments. This part fits within their broader portfolio of frequency-selective components.

Replacement Considerations

No public substitute part numbers are confirmed for direct replacement. Cross-referencing requires matching the 17.5GHz cutoff, SMA interface, and suspended stripline form factor. Consult Anatech Electronics directly for equivalent or upgraded models within their current production lineup.
