AE1750B11251

Overview

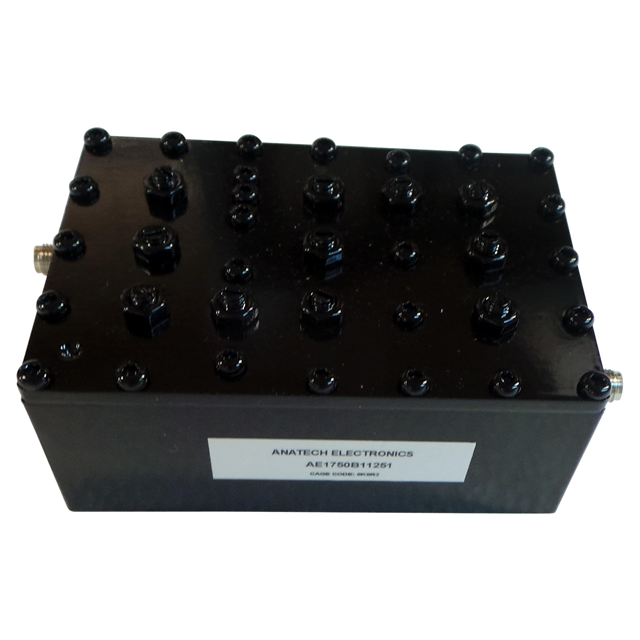

The AE1750B11251 is a cavity bandpass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 1.75 GHz and provides a bandwidth of 35 MHz. The component features SMA connectors for interface connections and maintains an insertion loss of 1 dB within the passband. Designed as a module, it serves as a specialized radio frequency filter for signal conditioning applications requiring precise frequency selection.

Feature Summary

• Cavity construction for high performance
• Bandpass filtering capability
• SMA connector interface

Applications

• Radio frequency signal processing
• Communication system filtering
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and electrical tolerances. Ensure compatibility with existing SMA interfaces in your design. Confirm that the 1.75 GHz center frequency aligns with your system requirements before procurement.

Selection Notes

Select this component when a fixed 1.75 GHz center frequency with 35 MHz bandwidth is required. The SMA interface suits standard RF setups. Consider the cavity form factor for size constraints and the 1 dB insertion loss for efficiency needs.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. This model belongs to their multi-frequency cavity bandpass filter series. The company focuses on designing and manufacturing these components for various electronic applications.

Replacement Considerations

Check for exact parameter matches if substituting. Verify center frequency, bandwidth, and connector type compatibility. Consult manufacturer databases for direct equivalents or custom design options if no exact match exists.
