AE1780B11642

Overview

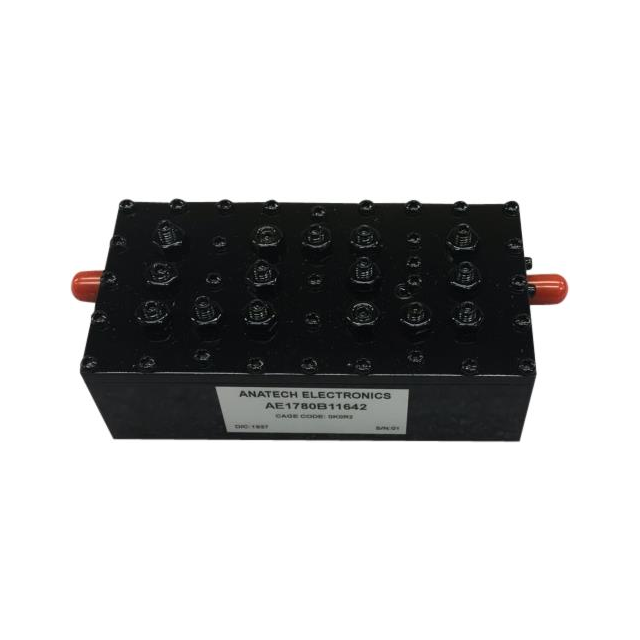

The AE1780B11642 is a cavity band pass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 1780 MHz and provides a bandwidth of 140 MHz. The module features SMA connectors and is designed for radio frequency applications. Key electrical specifications include an insertion loss of 1 dB within the passband. The component utilizes a band pass filter type to support signal transmission in the specified frequency range.

Feature Summary

• Supports a signal bandwidth of up to 140MHz for broad communication range
• Utilizes a filter type known as Band Pass
• Designed as a 1.78GHz Cavity Band Pass Filter

Applications

• Radio Frequency (RF) filtering
• Broad communication range systems
• Military and commercial RF applications

Procurement Notes

Verify the specific datasheet version for the AE1780B11642 to confirm exact mechanical dimensions and connector tolerances. Ensure compatibility with SMA interfaces. Check for any RoHS or REACH compliance status updates from Anatech Electronics Inc. prior to final integration into production designs.

Selection Notes

Select this component when a 1780 MHz center frequency with 140 MHz bandwidth is required. The SMA connector interface dictates system interconnect requirements. Consider the cavity construction for performance needs in military or commercial environments where standard surface mount filters may not suffice.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters, including band pass, low pass, and notch filters. The company serves both military and commercial sectors, offering standard and custom solutions. This part belongs to their line of cavity-based RF components.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Custom design services may be requested if exact matches are unavailable.
