AE1795B10862

Overview

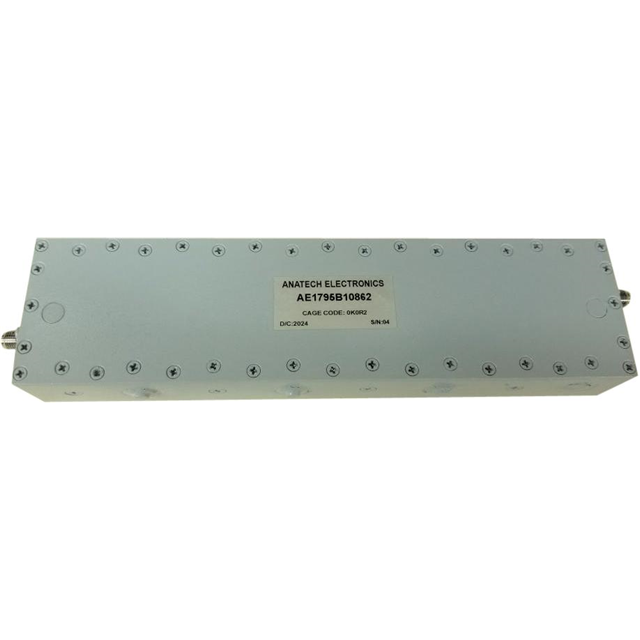

The AE1795B10862 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 1795 MHz and provides a bandwidth of 170 MHz, covering a passband from 1710 to 1880 MHz. The component features a maximum insertion loss of 1 dB. It utilizes SMA connectors for interface connections and is designed for chassis mounting.

Feature Summary

• Cavity construction for stable RF performance
• Band pass filtering capability centered at 1795 MHz
• SMA connector interface for signal transmission

Applications

• Radio frequency signal processing systems
• Communication equipment requiring specific frequency band selection
• RF test and measurement instrumentation

Procurement Notes

Verify the exact electrical specifications against the manufacturer's official datasheet before integration. Confirm that the SMA connector type and chassis mounting requirements align with your system design. Ensure the 1795 MHz center frequency and 170 MHz bandwidth meet your application needs. Check for any specific handling instructions related to cavity filters.

Selection Notes

Select this component when a fixed center frequency of 1795 MHz is required. The 170 MHz bandwidth defines the operational range. Consider the chassis mounting style and SMA connectors for physical integration. Verify insertion loss specifications against system sensitivity requirements.

Part Context

This part belongs to the Anatech Electronics Inc. RF filter series, specifically cavity band pass filters. These components are engineered for precise frequency selection in radio frequency applications. The model number indicates specific electrical characteristics including center frequency and bandwidth.

FAQ

What is the passband range of the AE1795B10862?

The passband ranges from 1710 MHz to 1880 MHz.

What type of connectors does this filter use?

The AE1795B10862 uses SMA connectors.
