Product Detailed Parameters

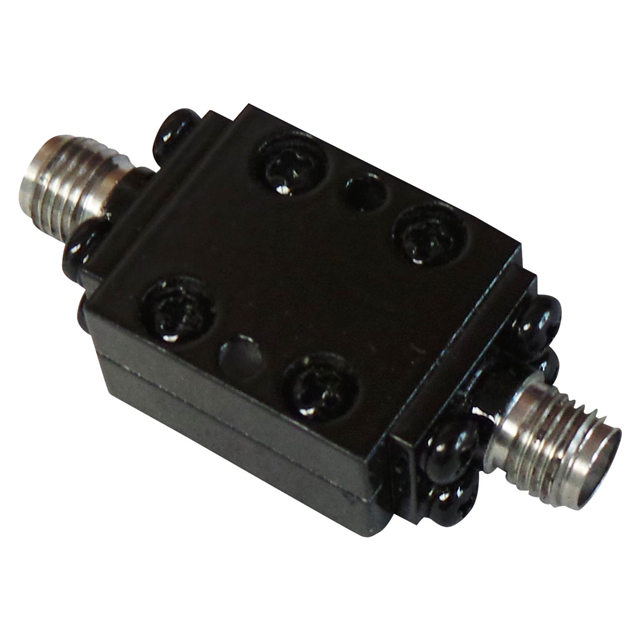

- Description：RF FILTER HIGH PASS 18GHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：18GHz (Cutoff)
- Bandwidth：10GHz
- Filter Type：High Pass
- Ripple：-
- Insertion Loss：2dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：0.709" L x 0.630" W (18.00mm x 16.00mm)
- Height (Max)：0.394" (10.00mm)
Download product information
Overview
The AE18000SSH6577 is a high-pass RF filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 18 GHz and operates within a bandwidth up to 40 GHz. The component utilizes suspended stripline technology for signal processing. It is housed in a module format equipped with SMA connectors for interface connectivity. The design supports applications requiring precise high-frequency filtering characteristics.
Feature Summary
- Suspended stripline construction for stable RF performance
- High-pass filtering capability with defined cutoff threshold
- Integrated SMA connector interfaces for direct system integration
Applications
- Radio frequency signal conditioning
- Microwave communication systems
- Test and measurement equipment filtering
Procurement Notes
Verify the specific datasheet version for the AE18000SSH6577 to confirm exact insertion loss and return loss parameters, as these values are critical for circuit design. Ensure that the SMA connector orientation and mounting requirements match the host system layout. Cross-reference the manufacturer's documentation for any updates regarding RoHS compliance or material specifications before finalizing procurement orders.
Selection Notes
Select this component when an 18 GHz cutoff frequency is required for high-pass applications. The suspended stripline architecture offers distinct advantages over standard microstrip designs in terms of power handling and consistency. Confirm that the operating environment does not exceed the thermal limits specified in the official datasheet. Evaluate the physical dimensions to ensure compatibility with the intended enclosure space.
Part Context
This part belongs to Anatech Electronics' series of low-profile strip-line high-pass filters. The model designation indicates specific electrical characteristics including the 18 GHz cutoff point. It is designed for use in microwave frequencies where compact size and reliable performance are necessary. The series typically includes variants with different cutoff frequencies and bandwidths.
Replacement Considerations
The AE18000SSH6615 is a related suspended stripline high-pass filter from the same manufacturer. Verify if the AE18000SSH6615 meets the specific bandwidth and connector requirements of the original design before substitution.
