Product Detailed Parameters
- Description：RF FILTER HIGH PASS 18GHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：18GHz (Cutoff)
- Bandwidth：22GHz
- Filter Type：High Pass
- Ripple：-
- Insertion Loss：2dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height (Max)：0.394" (10.00mm)
Download product information
Overview

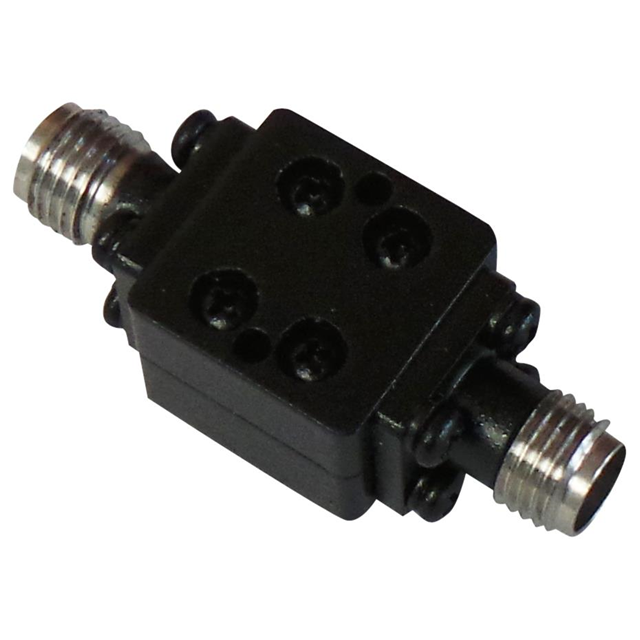

The AE18000SSH6580 is an 18 GHz suspended stripline high-pass RF filter module manufactured by Anatech Electronics Inc. It features a cutoff frequency of 18 GHz and a bandwidth extending to 22 GHz. The component utilizes SMA connectors for interface connectivity. Its insertion loss is specified at 2 dB. The unit is packaged in a box configuration and carries an ECCN classification of EAR99.
Feature Summary
- Suspended stripline construction for stable microwave performance
- High-pass filtering characteristic with 18 GHz cutoff
- Integrated SMA connector interfaces
Applications
- Microwave signal processing systems
- RF test and measurement equipment
- Communication subsystems requiring high-frequency filtering
Procurement Notes
Verify the specific datasheet version for precise electrical tolerances before integration. Confirm that the SMA connector type matches system requirements. Ensure environmental conditions align with the module's operational specifications. Check for any specific handling instructions related to the suspended stripline technology.
Selection Notes
Select this component when an 18 GHz high-pass response is required in a modular format. The suspended stripline design offers distinct advantages over planar technologies in certain high-frequency applications. Consider the 2 dB insertion loss impact on system noise figure. Verify compatibility with existing SMA-based infrastructure.
Part Context
This part belongs to Anatech Electronics' series of suspended stripline filters, designed for high-frequency RF applications. The product line typically includes various cutoff frequencies and filter types, such as low-pass and notch variants, utilizing similar advanced transmission line technologies for consistent performance across microwave bands.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer engineering support for direct equivalents or functional replacements within the suspended stripline portfolio.
