AE18000SSH6615

Overview

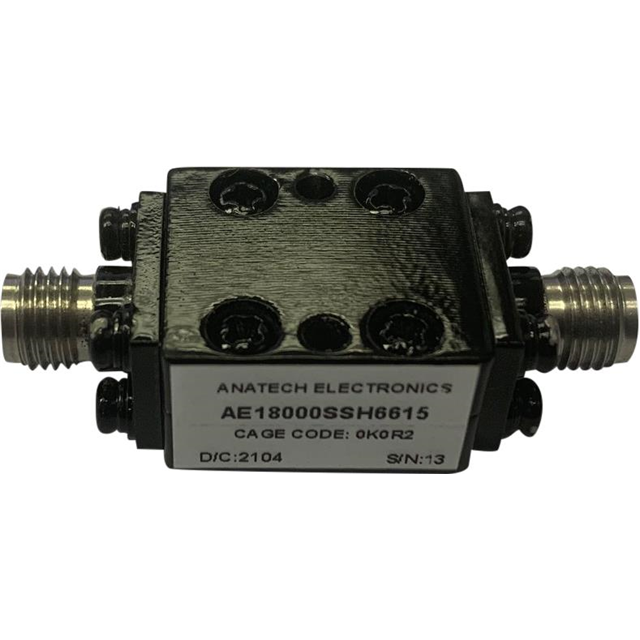

The AE18000SSH6615 is a suspended stripline high-pass filter manufactured by Anatech Electronics Inc. It features an 18 GHz cutoff frequency and operates within a passband ranging from 18 to 40 GHz. The component utilizes SMA connectors for interface connectivity. This design supports applications requiring precise high-frequency signal filtering in RF and microwave systems.

Feature Summary

• Suspended stripline construction for stable RF performance
• High-pass filtering capability with defined cutoff characteristics
• Integrated SMA connector interfaces

Applications

• RF communication systems
• Microwave signal processing
• Test and measurement equipment

Procurement Notes

Verify the specific suffix designation, such as -SM, against official datasheets to confirm connector type and mechanical dimensions. Ensure the operating environment matches the component's rated frequency range of 18 to 40 GHz. Confirm RoHS compliance status through manufacturer documentation prior to integration into final assemblies.

Selection Notes

Select this component when a high-pass response starting at 18 GHz is required. The suspended stripline technology offers distinct advantages over traditional waveguide or microstrip designs in terms of size and power handling. Evaluate insertion loss specifications in the detailed datasheet to ensure compatibility with system noise budgets.

Part Context

Anatech Electronics Inc., founded in 1990, specializes in RF and microwave filters. The company holds ISO 9001:2015 certification and focuses on designing custom and standard filter solutions. The AE18000SSH6615 represents their suspended stripline product line, targeting high-frequency applications.

Replacement Considerations

Cross-reference part number AE18000SSH6615-SM for identical functional specifications with potential minor mechanical variations. Verify that substitute components maintain the same 18 GHz cutoff and 18-40 GHz passband requirements.
