Product Detailed Parameters
- Description：RF FILTER LOW PASS 18GHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：18GHz (Cutoff)
- Bandwidth：-
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：3dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：0.709" L x 0.669" W (18.00mm x 17.00mm)
- Height (Max)：0.394" (10.00mm)
Download product information
Overview

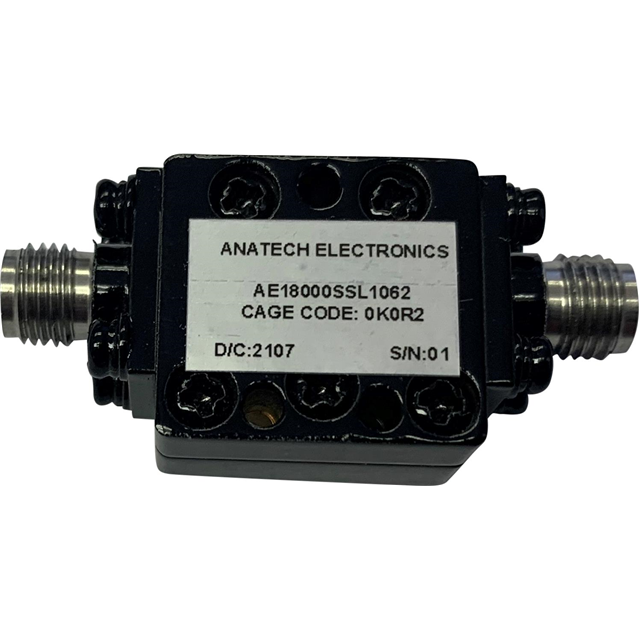

The AE18000SSL1062 is an 18 GHz suspended stripline low-pass RF filter module manufactured by Anatech Electronics Inc. It features SMA connectors and chassis mounting. The cutoff frequency is 18 GHz with a passband from DC to 18 GHz. Insertion loss is ≤1.0 dB from DC to 17.3 GHz and ≤3.0 dB from 17.3 GHz to 18 GHz.
Feature Summary
- Suspended stripline construction for high-performance RF filtering
- Low insertion loss characteristics in the passband
- Chassis mount configuration with SMA connectors
Applications
- Military defense systems
- Commercial RF applications
Procurement Notes
Verify the specific part number AE18000SSL1062 against official Anatech Electronics documentation to confirm connector type, mounting style, and electrical specifications. Ensure compatibility with system requirements before procurement.
Selection Notes
Select this component for applications requiring an 18 GHz low-pass filter with suspended stripline technology. Consider the chassis mount form factor and SMA interface when integrating into RF test or communication equipment.
Part Context
Anatech Electronics Inc. specializes in RF and microwave filters. This model belongs to their suspended stripline series, designed for high-frequency performance in demanding environments.
Replacement Considerations
No public substitute part numbers are confirmed for this specific model.
