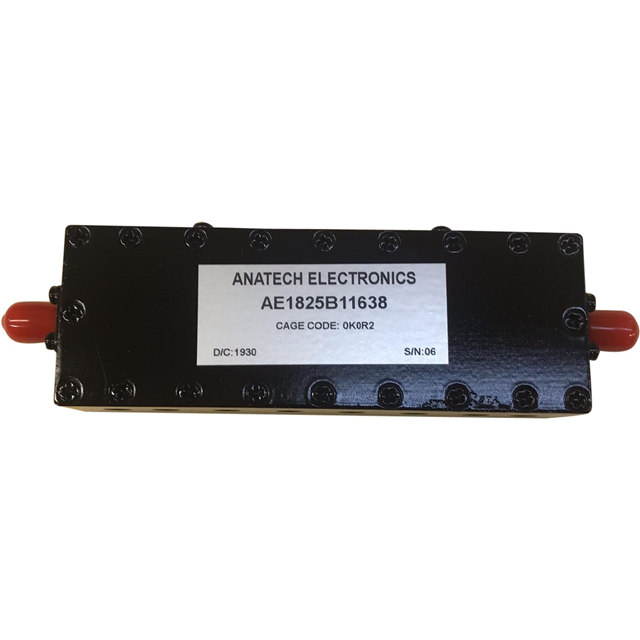

AE1825B11638

$362.95

Description：RF FILTER BANDPASS 1.8255GHZ MOD
Series：-
Mfr：Anatech Electronics Inc.
Package：Box

SKU:73bdc4317a70 Category: RF Filters Brand: Anatech Electronics Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER BANDPASS 1.8255GHZ MOD
Series：-
Mfr：Anatech Electronics Inc.
Package：Box
Frequency：1.8255GHz Center
Bandwidth：350.5MHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：1dB
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Size / Dimension：3.602" L x 1.575" W (91.50mm x 40.00mm)
Height (Max)：0.799" (20.30mm)

Download product information

AE1825B11638

Overview

The AE1825B11638 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 1825.5 MHz and provides a bandwidth of 350.5 MHz. The component features SMA connectors for interface connections.

Feature Summary

Cavity construction for stable RF performance
Band pass filtering capability
SMA connector interfaces

Applications

Radio frequency signal processing
Microwave communication systems
RF filter modules

Procurement Notes

Verify the specific part number AE1825B11638 against official Anatech Electronics documentation to confirm technical specifications. Ensure compatibility with required SMA connectors and frequency parameters before procurement. Cross-reference datasheets for accurate electrical characteristics.

Selection Notes

Select this component based on the required 1825.5 MHz center frequency and 350.5 MHz bandwidth. Confirm that SMA connectors meet system interface requirements. Validate cavity construction suitability for the intended RF environment.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters for military and commercial applications. This cavity band pass filter is part of their standard or custom RF filter portfolio, designed for reliable signal processing in demanding environments.

Replacement Considerations

No publicly confirmed substitute part numbers are available for direct replacement. Consult Anatech Electronics for equivalent models or custom alternatives matching the 1825.5 MHz specification.
