Product Detailed Parameters
- Description：RF FILTER LOWPASS 18.5GHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：18.5GHz (Cutoff)
- Bandwidth：-
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：3dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：0.709" L x 0.669" W (18.00mm x 17.00mm)
- Height (Max)：0.394" (10.00mm)
Download product information
Overview

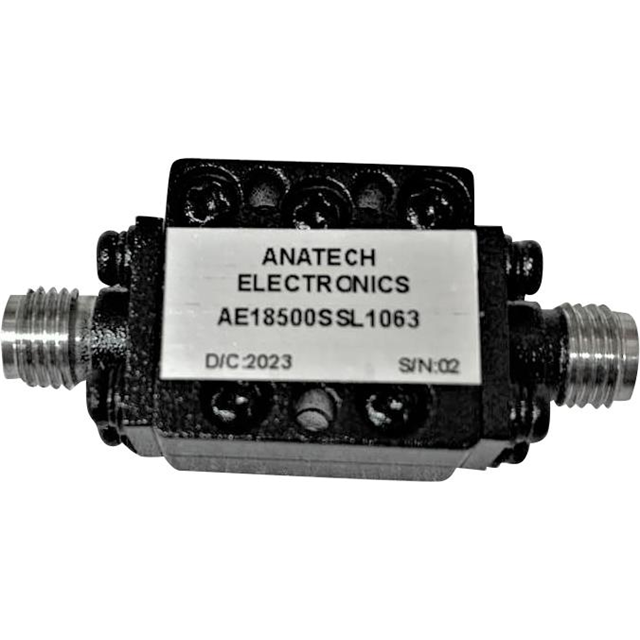

The AE18500SSL1063 is a suspended stripline low-pass RF filter module manufactured by Anatech Electronics Inc. It features a cutoff frequency of 18.5 GHz and utilizes SMA connectors for interface connectivity. The component is designed for chassis mounting with physical dimensions of 0.709 inches in length and 0.669 inches in width (18.00 mm x 17.00 mm). It operates within the radio frequency spectrum, providing signal filtering capabilities up to its specified bandwidth limit.
Feature Summary
- Suspended stripline construction for stable RF performance
- Low-pass filter topology with defined cutoff characteristics
- Integrated SMA connector interfaces for direct system integration
Applications
- High-frequency radio frequency signal conditioning
- Microwave communication systems requiring band-limiting
- Test and measurement equipment input stages
Procurement Notes
Verify the specific datasheet version and RoHS compliance status directly with Anatech Electronics Inc. or authorized distributors before procurement. Confirm that the SMA connector gender and mating requirements align with your system design. Ensure chassis mounting provisions match your enclosure specifications to maintain proper grounding and mechanical stability during operation.
Selection Notes
Select this component when a fixed 18.5 GHz low-pass response is required in a modular form factor. The suspended stripline technology offers distinct advantages over planar designs for high-power handling and consistent impedance control. Evaluate the chassis mount requirement against available space constraints and ensure thermal management strategies accommodate the module's operational environment.
Part Context
Anatech Electronics Inc. specializes in the design and manufacturing of standard and custom RF and microwave filters for military and commercial applications. This company holds ISO 9001:2015 certification and has been operating since 1990. The AE18500SSL1063 represents their capability to produce high-frequency modules utilizing advanced suspended stripline techniques for precise spectral control.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Due to the proprietary nature of suspended stripline designs and exact cutoff frequencies, cross-referencing requires detailed electrical simulation and mechanical verification against the original Anatech specification.
