AE1900H9918

Overview

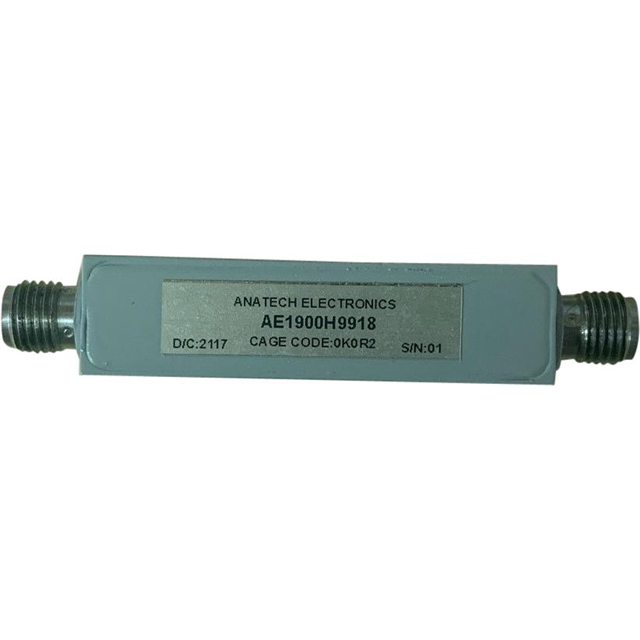

The AE1900H9918 is a high-pass RF filter module manufactured by Anatech Electronics Inc. It features a cutoff frequency of 1.9 GHz and a bandwidth of 6.1 GHz. Designed for radio frequency applications, this LC-based component operates within the microwave spectrum. The unit is supplied in a box package configuration.

Feature Summary

• High-pass filtering capability with a defined cutoff frequency
• LC filter construction for RF signal processing
• Module form factor for integration

Applications

• Radio frequency signal conditioning
• Microwave circuit filtering
• RF system component integration

Procurement Notes

Verify the specific datasheet for detailed electrical characteristics and mechanical dimensions before procurement. Confirm that the 1.9 GHz cutoff and 6.1 GHz bandwidth align with your system requirements. Ensure compatibility with your RF interface standards. Contact the manufacturer or authorized distributors for current availability and technical support documentation.

Selection Notes

Select this component when a high-pass response starting at 1.9 GHz is required. Consider the LC topology and module packaging for your design constraints. Evaluate the 6.1 GHz bandwidth against your operational frequency range. Ensure the RF filter meets the necessary insertion loss and rejection specifications for your application environment.

Part Context

Anatech Electronics Inc. specializes in standard and custom RF filters for military and commercial sectors. The AE1900H9918 belongs to their line of LC high-pass filters. This product category includes various cutoff frequencies and bandwidths tailored for specific RF and microwave applications.

FAQ

What is the cutoff frequency of the AE1900H9918?

The cutoff frequency is 1.9 GHz.

What type of filter is the AE1900H9918?

It is an LC high-pass RF filter module.
