AE1950B11265

Overview

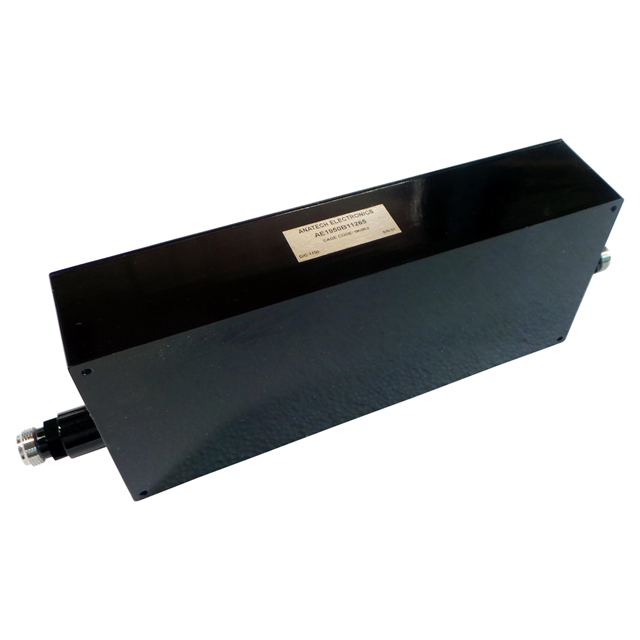

The AE1950B11265 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 1.95 GHz and provides a bandwidth of 60 MHz. The component features an insertion loss of 0.75 dB and utilizes SMA connectors for module interfacing.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering capability at 1.95 GHz
• SMA connector interface

Applications

• Radio frequency signal processing
• Telecommunications infrastructure
• RF test and measurement equipment

Procurement Notes

Verify the specific datasheet version to confirm electrical tolerances and mechanical dimensions. Ensure SMA connector compatibility with system requirements. Confirm lead times as availability may vary. Validate that the 1.95 GHz center frequency meets application specifications before procurement.

Selection Notes

Select this component when a 1.95 GHz center frequency with 60 MHz bandwidth is required. Consider the 0.75 dB insertion loss for signal integrity needs. Verify SMA connector suitability for the intended RF path. Evaluate cavity construction benefits for environmental stability compared to other filter types.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. This model belongs to their cavity bandpass filter series, designed for precise frequency selection in radio frequency applications. The company focuses on custom and standard filter solutions for various industries.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Consult Anatech Electronics engineering for potential equivalents or custom design options if substitution is necessary.
