AE1B9592

Overview

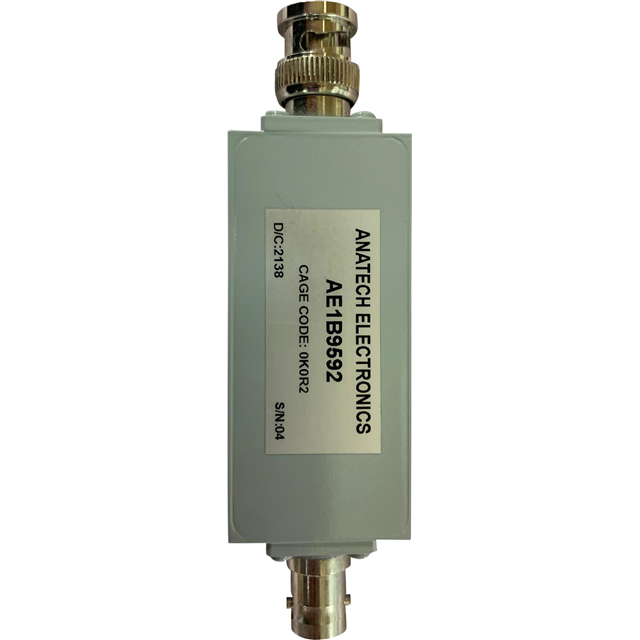

The AE1B9592 is a bandpass filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 1 MHz with a bandwidth of 400 kHz. The component exhibits an insertion loss of 2 dB and utilizes BNC connectors for interface. This LC-based filter is designed for specific RF signal conditioning applications requiring precise frequency selection within the low-frequency spectrum.

Feature Summary

• LC bandpass filter design
• 1 MHz center frequency operation
• 400 kHz bandwidth specification
• BNC connector interface

Applications

• RF signal filtering
• Frequency selection circuits
• Signal conditioning systems

Procurement Notes

Verify the exact datasheet AE1B9592.pdf from Anatech Electronics Inc. to confirm mechanical dimensions, environmental ratings, and pinout configurations. Ensure compatibility with system impedance and connector types before integration. Cross-reference part numbers with official manufacturer documentation to avoid substitution errors.

Selection Notes

Select this component when a 1 MHz center frequency with 400 kHz bandwidth is required. Consider the 2 dB insertion loss impact on signal strength. Verify that BNC connectors align with existing board layout and cabling infrastructure. Confirm operating temperature ranges meet application requirements.

Part Context

Anatech Electronics Inc. specializes in RF filters and components. The AE1B9592 belongs to their line of LC bandpass filters, distinct from higher-frequency cavity or surface-mount variants. It serves niche applications requiring discrete frequency filtering at 1 MHz.

Replacement Considerations

No public substitute part numbers are confirmed for direct replacement. Consult Anatech Electronics Inc. for equivalent models or custom specifications if the AE1B9592 is unavailable.
