AE2000B11604

Overview

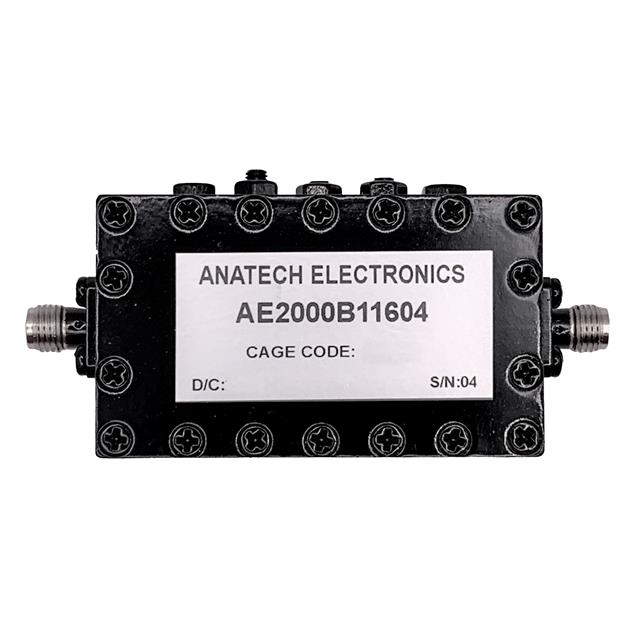

The AE2000B11604 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2000 MHz and provides a bandwidth of 20 MHz. The component features SMA connectors for interface connectivity. Key electrical specifications include an insertion loss of 1.5 dB within the passband. This module is designed for radio frequency applications requiring precise signal filtering at the specified frequency range.

Feature Summary

• Cavity construction for stable RF performance
• Band pass filtering capability centered at 2000 MHz
• SMA connector interface for standard integration

Applications

• Radio frequency signal processing
• Communication system filtering
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version for the AE2000B11604 to confirm exact electrical tolerances and mechanical dimensions before procurement. Ensure compatibility with SMA connector types in your assembly design. Cross-reference manufacturer documentation for any updates regarding material composition or environmental operating limits to guarantee compliance with project requirements.

Selection Notes

Select this component when a fixed 2000 MHz center frequency with narrow 20 MHz bandwidth is required. The cavity design offers distinct advantages over planar filters in terms of power handling and Q-factor stability. Verify that the 1.5 dB insertion loss meets system link budget constraints. Confirm that the SMA interface aligns with existing board layout and cable harness specifications.

Part Context

Anatech Electronics Inc. specializes in high-performance RF components, including filters and duplexers. The AE2000B11604 belongs to their line of cavity-based band pass filters, which are engineered for robustness and precision in demanding RF environments. These components are typically utilized in scenarios where size constraints allow for cavity structures while maintaining strict spectral purity requirements.

Replacement Considerations

No public confirmed substitute part numbers are available for the AE2000B11604. Replacement requires matching the 2000 MHz center frequency, 20 MHz bandwidth, and SMA connector interface exactly. Any alternative must be verified against the original datasheet specifications to ensure functional equivalence.
