AE2000N2232

$720.72

Description：RF FILTER BAND STOP 2GHZ MODULE
Series：-
Mfr：Anatech Electronics Inc.
Package：Box

SKU:f4c6146c8ab6 Category: RF Filters Brand: Anatech Electronics Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER BAND STOP 2GHZ MODULE
Series：-
Mfr：Anatech Electronics Inc.
Package：Box
Frequency：2GHz Center
Bandwidth：5MHz
Filter Type：Band Stop
Ripple：-
Insertion Loss：1.2dB
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Size / Dimension：8.898" L x 1.654" W (226.00mm x 42.00mm)
Height (Max)：1.980" (50.30mm)

Download product information

AE2000N2232

Overview

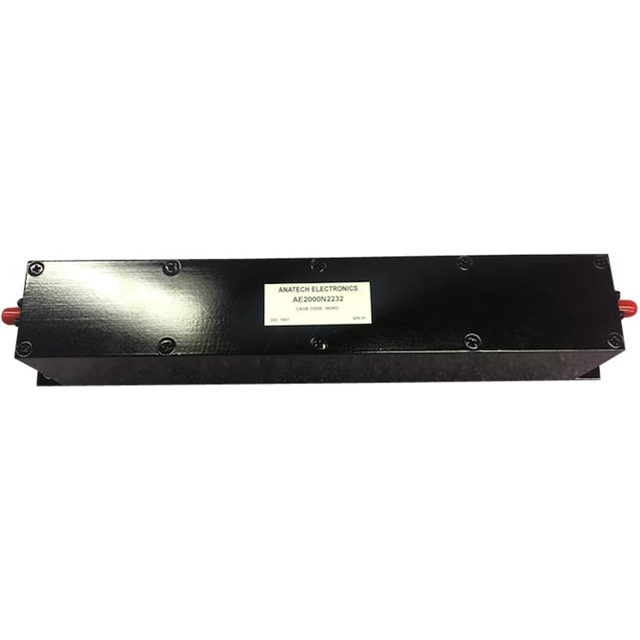

The AE2000N2232 is a cavity band notch filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2000 MHz and features a bandwidth of 5 MHz. The component exhibits an insertion loss of 1.2 dB and utilizes SMA connectors for interface connectivity.

Feature Summary

Cavity construction for high performance
Band stop filtering capability
SMA connector interface

Applications

RF signal processing
Microwave systems
Military applications
Commercial communications

Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with existing SMA interfaces in your system design. Confirm that the 2000 MHz center frequency aligns with your operational requirements before procurement.

Selection Notes

Select this component when a narrowband notch filter at 2 GHz is required. Consider the 1.2 dB insertion loss impact on system gain. Verify that the SMA connector type matches your cable assembly standards. Evaluate if the cavity form factor fits within your available space constraints.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters, including standard and custom designs for military and commercial sectors. Founded in 1990, the company holds ISO 9001:2015 certification. This part belongs to their cavity filter product line, designed for robust performance in demanding environments.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Custom design services may be requested if exact replacement is unavailable.
