AE2000SSH6549

Overview

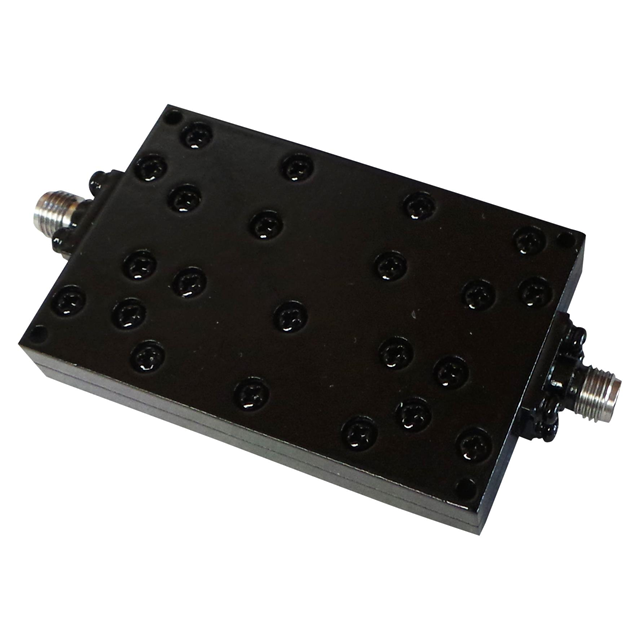

The AE2000SSH6549 is a high-pass RF filter module manufactured by Anatech Electronics Inc. It features a cutoff frequency of 2 GHz and a bandwidth of 11 GHz. The component utilizes suspended stripline technology for signal processing. It is equipped with SMA connectors for interface compatibility. The unit is designed as a standalone module for radio frequency applications.

Feature Summary

• High-pass filtering capability with specified cutoff characteristics
• Suspended stripline construction for stable performance
• Integrated SMA connector interfaces

Applications

• Radio frequency signal conditioning
• Microwave system filtering
• RF module integration

Procurement Notes

Verify the specific part number AE2000SSH6549 against official Anatech Electronics Inc. documentation to confirm technical specifications. Ensure compatibility with required SMA interfaces and frequency ranges. Cross-reference datasheets for precise electrical parameters before procurement decisions.

Selection Notes

Select this component when a 2 GHz high-pass response is required in an RF design. The suspended stripline architecture offers distinct performance characteristics compared to other filter types. Confirm that the 11 GHz bandwidth aligns with system requirements. Validate connector type compatibility during the selection phase.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. This model belongs to their suspended stripline product line. The company focuses on custom and standard filter designs for various frequency bands. The AE series typically denotes specific frequency and type configurations within their catalog.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Verify exact electrical matches if considering alternatives from other manufacturers.
