Product Detailed Parameters
- Description：CMC 160UH 100MA 2LN SMD AEC-Q200
- Series：-
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：100mA
- DC Resistance (DCR) (Max)：5Ohm
- Voltage Rating - DC：60V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height (Max)：0.116" (2.95mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：160 µH @ 100 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

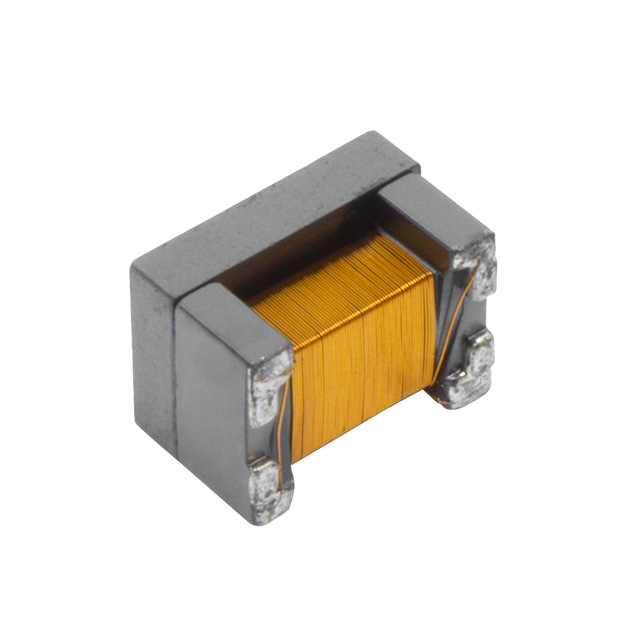

The AE2002 is a two-line surface mount common mode choke manufactured by Pulse Electronics, designed for automotive Ethernet applications. It features an inductance of 160 µH at 100 kHz and supports 100BASE-T1 speeds. The component has a maximum DC current rating of 100 mA and a DC resistance (DCR) of 5 ohms per winding. It operates within a temperature range of -40°C to +125°C and holds AEC-Q200 qualification. The package dimensions are 4.50mm x 3.20mm with a maximum height of 2.95mm.
Feature Summary
- AEC-Q200 qualified for automotive reliability standards
- Optimized for 100BASE-T1 automotive Ethernet signaling
- Compact surface mount footprint for space-constrained designs
Applications
- Automotive Ethernet network interfaces
- 100BASE-T1 data line protection
- In-vehicle communication systems
Procurement Notes
Verify the specific ordering suffix to confirm packaging type, such as tape and reel or cut tape, as these affect handling but not electrical function. Confirm RoHS compliance status and ensure the supplier provides valid traceability documentation for automotive grade components. Check for any recent product change notifications that may impact mounting or material composition.
Selection Notes
Select this component when designing for 100BASE-T1 automotive networks requiring high common mode rejection. Ensure the design accommodates the 100 mA current limit and 5 ohm DCR. Verify PCB layout constraints against the 4.50mm x 3.20mm footprint and 2.95mm height limits. Consider thermal management within the -40°C to +125°C operating range.
Part Context
Part of Pulse Electronics' Automotive Ethernet series, the AE2002 targets high-reliability vehicle networking. It complements other models like AE1210 and AE5002, offering specific performance characteristics for 100 Mbps Ethernet links. The series emphasizes compact size and robust filtering for modern automotive electronic architectures.
Replacement Considerations
AE0100 is a related model in the same series with different DCR specifications. Verify compatibility if substituting, as electrical parameters differ. No direct cross-reference part numbers are publicly confirmed for identical replacement without engineering validation.
