AE20500B11423

$795.38

Description：RF FILTER BAND PASS 20.5GHZ MOD
Series：-
Mfr：Anatech Electronics Inc.
Package：Box

SKU:dde4d4e1e9d0 Category: RF Filters Brand: Anatech Electronics Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER BAND PASS 20.5GHZ MOD
Series：-
Mfr：Anatech Electronics Inc.
Package：Box
Frequency：20.5GHz Center
Bandwidth：600MHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：1.8dB
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Size / Dimension：2.791" L x 0.610" W (70.90mm x 15.50mm)
Height (Max)：0.354" (9.00mm)

Download product information

AE20500B11423

Overview

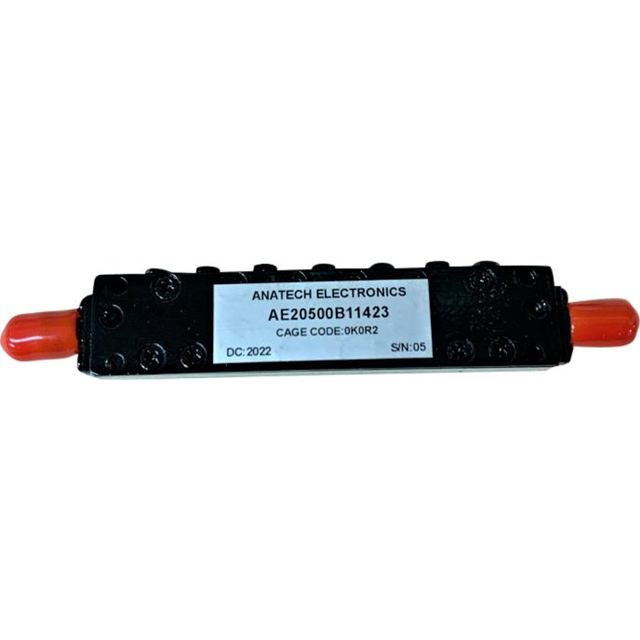

The AE20500B11423 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc., designed for high-frequency applications. It operates with a center frequency of 20.5 GHz and provides a bandwidth of 600 MHz, covering the range from 20.2 GHz to 20.8 GHz. The component features SMA connectors and exhibits a maximum insertion loss of 1.8 dB within the passband. This module is engineered for stable performance in radio frequency signal processing environments requiring precise frequency selection.

Feature Summary

Cavity construction for stable RF filtering
SMA connector interface for modular integration
High-frequency bandpass operation at 20.5 GHz

Applications

Radio frequency signal processing systems
Microwave communication equipment
Test and measurement instrumentation

Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to confirm exact electrical specifications, as variations may exist within the product family. Ensure compatibility with system impedance requirements before procurement. Cross-reference datasheets for mechanical dimensions and mounting details to validate integration feasibility.

Selection Notes

Select this component when a fixed 20.5 GHz center frequency with 600 MHz bandwidth is required. Consider the 1.8 dB insertion loss specification for link budget calculations. Verify that SMA connectors align with existing board or cable infrastructure. Confirm thermal and environmental operating ranges meet application constraints.

Part Context

This model belongs to Anatech Electronics Inc.'s cavity bandpass filter series, which covers frequencies from 0.1 to 47 GHz. The AE20500B11423 is distinct from similar models like the AE20500B11422, which offers a wider 1000 MHz bandwidth. These filters are typically used in specialized RF applications requiring high selectivity and low loss.

Replacement Considerations

The AE20500B11422 is a documented substitute within the same series but differs in bandwidth (1000 MHz vs. 600 MHz). Verify if the increased bandwidth meets system requirements. No other direct substitutes are confirmed in public data.
