AE2050B10975

Overview

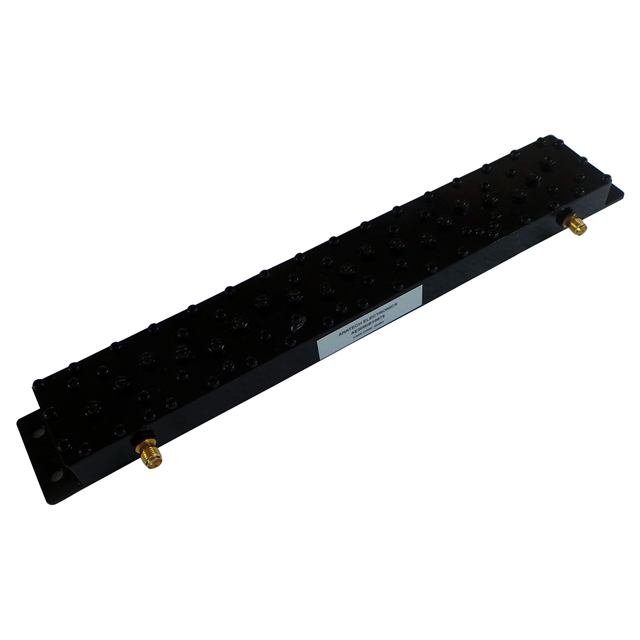

The AE2050B10975 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.05 GHz and provides a bandwidth of 100 MHz, covering the 2000-2100 MHz range. The component features SMA connectors and exhibits an insertion loss of 1.5 dB. Physically, it is housed in a box package measuring 10.098 inches in length and 1.512 inches in width.

Feature Summary

• Constructed as a cavity bandpass filter for stable RF performance
• Equipped with SMA connectors for standard interface compatibility
• Designed for specific microwave frequency band applications

Applications

• Commercial RF systems
• Aerospace communication equipment
• Defense signal processing units

Procurement Notes

Verify the exact physical dimensions and connector type against your system requirements before ordering. Confirm that the 2000-2100 MHz operational range aligns with your specific frequency needs. Ensure compatibility with SMA interfaces. Check for any specific handling instructions regarding cavity components to maintain performance integrity during installation.

Selection Notes

Select this component when a fixed 100 MHz bandwidth at 2.05 GHz is required. Consider the physical size constraints due to the cavity construction. Evaluate if the specified insertion loss meets your system budget. This part is suitable for applications requiring robust RF filtering in commercial, aerospace, or defense environments.

Part Context

Anatech Electronics Inc. specializes in designing and manufacturing RF and microwave filters, diplexers, and related components. Founded in 1990, the company holds ISO 9001:2015 certification and serves commercial, aerospace, and defense sectors. The AE2050B10975 represents their cavity filter technology for precise frequency selection.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Custom design may be required if exact specifications cannot be met by existing stock.
