Product Detailed Parameters

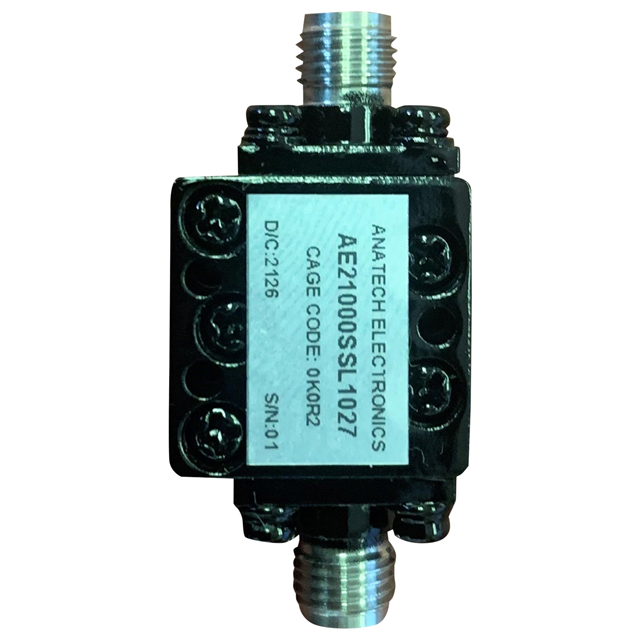

- Description：RF FILTER LOW PASS 21GHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：21GHz (Cutoff)
- Bandwidth：-
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：3dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：0.669" L x 0.669" W (17.00mm x 17.00mm)
- Height (Max)：0.406" (10.30mm)
Download product information
Overview
The AE21000SSL1027 is a low-pass RF filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 21 GHz and utilizes suspended stripline technology for its internal design. The component is housed in a module format equipped with SMA connectors for interface connectivity. This filter is designed to pass frequencies from DC up to the specified cutoff point while attenuating higher frequencies.
Feature Summary
- Suspended stripline construction for stable RF performance
- Low-pass filtering characteristic with 21 GHz cutoff
- Integrated SMA connector interfaces for signal transmission
Applications
- RF signal processing systems
- Microwave communication equipment
- Test and measurement instrumentation
Procurement Notes
Verify the specific datasheet version and connector orientation requirements before integration. Confirm that the SMA connector gender and cable assembly specifications match the system design. Ensure environmental conditions align with the manufacturer's operational limits for suspended stripline modules.
Selection Notes
Select this component when a 21 GHz low-pass response is required in a modular form factor. The suspended stripline design offers distinct advantages over microstrip or waveguide alternatives in specific bandwidth applications. Evaluate insertion loss and return loss parameters against system budget constraints prior to final selection.
Part Context
Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters for military and commercial sectors. The AE21000SSL1027 belongs to their line of suspended stripline low-pass filters, which are engineered for high-frequency stability and precise spectral control in demanding electronic environments.
Replacement Considerations
Consult official substitution lists for direct equivalents. Generic replacements may not match the suspended stripline topology or SMA interface specifications. Verify electrical performance curves and mechanical dimensions to ensure compatibility with existing PCB layouts and housing constraints.
