AE2145NS2200

Overview

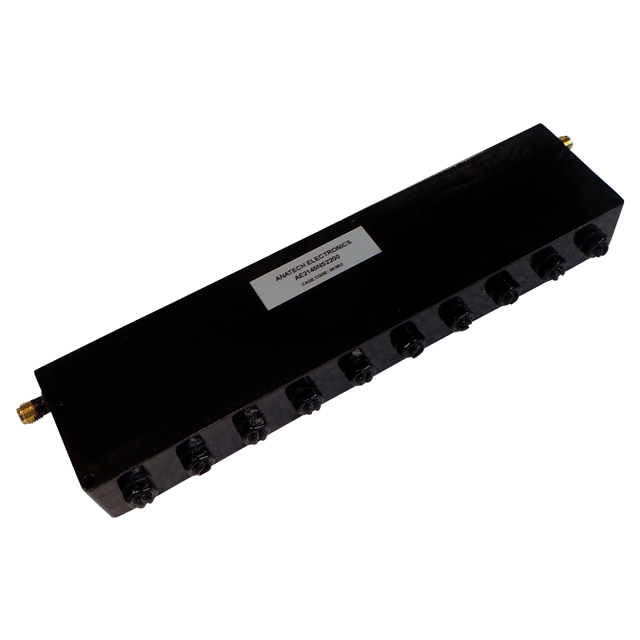

The AE2145NS2200 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.145 GHz and provides a bandwidth of 70 MHz. The component features an insertion loss of 1.2 dB. It is housed in a module package equipped with SMA connectors, designed for radio frequency signal filtering applications.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering capability at 2.145 GHz
• Integrated SMA connectors for direct interfacing

Applications

• Radio frequency signal processing
• Communication system filtering
• RF module integration

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and connector orientation. Ensure compatibility with existing SMA interfaces in the target assembly. Check for any environmental ratings or handling instructions specified by the manufacturer prior to installation.

Selection Notes

Select this component when a fixed center frequency of 2.145 GHz is required. The 70 MHz bandwidth suits applications needing moderate selectivity. The module form factor simplifies integration compared to discrete components. Verify that the 1.2 dB insertion loss meets system power budget requirements.

Part Context

This part belongs to the Anatech Electronics Inc. line of cavity RF filters. These components are engineered for high-performance signal conditioning in radio frequency environments. The series typically offers robust shielding and precise frequency control through cavity resonance design principles.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Cross-referencing requires matching the 2.145 GHz center frequency, 70 MHz bandwidth, and SMA connector type exactly.
