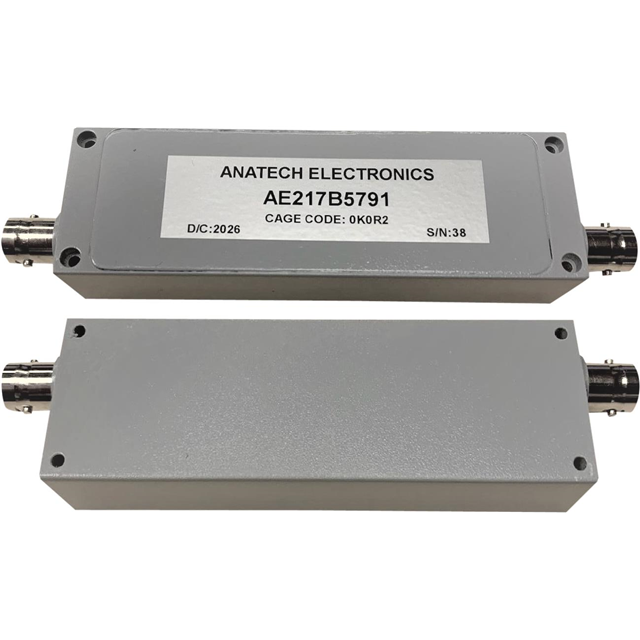

AE217B5791

$508.30

Description：RF FILT BAND PASS 217.775MHZ BNC
Series：-
Mfr：Anatech Electronics Inc.
Package：Box

SKU:5549f76d5023 Category: RF Filters Brand: Anatech Electronics Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILT BAND PASS 217.775MHZ BNC
Series：-
Mfr：Anatech Electronics Inc.
Package：Box
Frequency：217.775MHz Center
Bandwidth：-
Filter Type：Band Pass
Ripple：0.1dB
Insertion Loss：1.2dB
Mounting Type：Chassis Mount
Package / Case：BNC In-Line Module
Size / Dimension：4.000" L x 1.250" W (101.60mm x 31.75mm)
Height (Max)：0.750" (19.05mm)

Download product information

AE217B5791

Overview

The AE217B5791 is an active band pass RF filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 217.775MHz with a specified ripple of 0.1dB. The component utilizes BNC connectors for interface and is supplied in box packaging. This device is designed for specific radio frequency signal filtering applications requiring precise center frequency selection.

Feature Summary

Band pass filter topology for selective frequency transmission
Center frequency operation at 217.775MHz
Low ripple specification of 0.1dB for signal integrity
BNC connector interface for standard RF integration

Applications

Radio frequency signal processing systems
Communication equipment requiring specific band filtering
Test and measurement instrumentation

Procurement Notes

Verify the manufacturer part number AE217B5791 against official Anatech Electronics Inc. documentation to confirm specifications. Ensure compatibility with system requirements regarding the 217.775MHz center frequency and BNC interface. Check for RoHS compliance status as indicated in available datasheets before procurement.

Selection Notes

Select this component when a fixed center frequency of 217.775MHz is required. The 0.1dB ripple characteristic suits applications demanding minimal passband distortion. Confirm that BNC connectivity meets the system's interconnection standards. Validate that the band pass type aligns with the necessary spectral filtering requirements.

Part Context

This part belongs to the Anatech Electronics Inc. RF filter series, specifically designated for band pass applications. The model number structure indicates specific frequency and connector characteristics within the manufacturer's portfolio. It is distinct from other models like AE2140NS2183 or AE213B10681 which serve different frequency ranges.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult Anatech Electronics Inc. directly for potential cross-references or alternative components meeting identical 217.775MHz band pass specifications.
