AE2200B11704

Overview

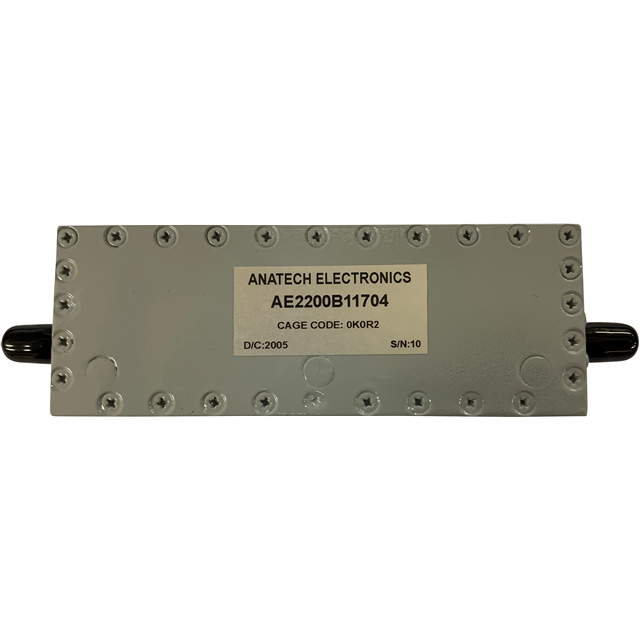

The AE2200B11704 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.2GHz and provides a bandwidth of 30MHz. The component features an insertion loss of 1dB and utilizes SMA connectors for interface connections. Designed as a module, it supports base mounting installation. This filter is categorized under radio frequency components and is currently listed as active in production.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering capability at 2.2GHz
• SMA connector interface
• Base mount installation style

Applications

• Radio frequency signal processing
• Microwave communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version for precise electrical tolerances and mechanical dimensions before integration. Confirm that the SMA connector gender and cable assembly requirements match your system design. Ensure the base mounting hardware is compatible with your chassis specifications. Check for any RoHS or REACH compliance documentation if required by your procurement standards. Validate the operating temperature range against your environmental conditions.

Selection Notes

Select this component when a narrow 30MHz bandwidth is required around the 2.2GHz center frequency. The 1dB insertion loss specification suits applications demanding minimal signal attenuation. The SMA interface simplifies integration into standard RF test setups. Consider the physical size and base mounting requirements during PCB or chassis layout planning. Compare alternative cavity filters if different bandwidths or connector types are needed.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. The company offers various filter types including bandpass, low pass, and high pass configurations. The AE series represents their cavity-based solutions designed for robust performance in demanding RF environments. This part fits within their portfolio of modular RF components intended for professional and industrial applications.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Consult Anatech Electronics engineering database for spec-matched alternatives if exact replacement is unavailable. Custom designs may be required if no direct equivalent exists in the manufacturer's catalog.

FAQ

What is the center frequency of the AE2200B11704?

The center frequency is 2.2GHz.

What type of connectors does this filter use?

It uses SMA connectors.

Is this filter available for base mounting?

Yes, the installation type is base mount.
