AE2202B11714

Overview

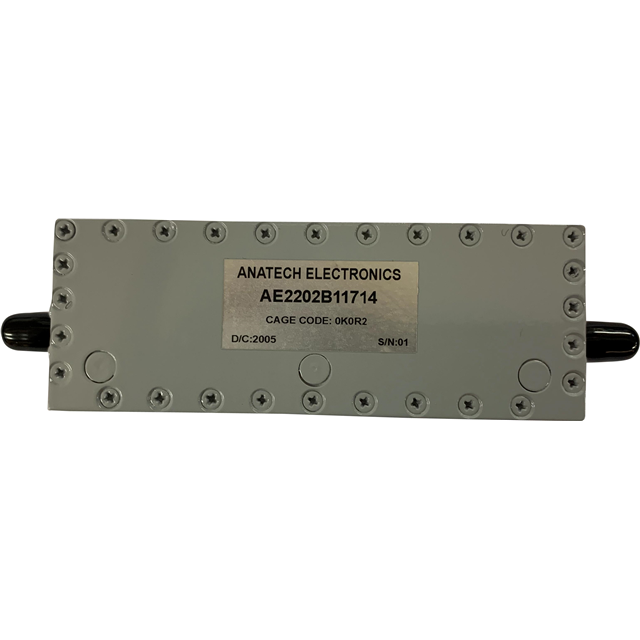

The AE2202B11714 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 2202.5 MHz with a bandwidth of 15 MHz. The module features SMA connectors and exhibits an insertion loss of 2 dB. Designed for radio frequency applications, this component provides signal filtering capabilities within its specified passband.

Feature Summary

• Cavity construction for stable RF performance
• Band pass filtering functionality
• SMA connector interface

Applications

• Radio frequency signal processing
• Communication systems filtering

Procurement Notes

Verify the exact part number AE2202B11714 against official Anatech Electronics documentation to ensure compatibility. Confirm connector type and frequency specifications match system requirements before procurement. Check for any specific handling instructions related to cavity filters.

Selection Notes

Select this component when a 2202.5 MHz center frequency with 15 MHz bandwidth is required. Ensure SMA connectors are compatible with existing circuitry. Consider insertion loss specifications for system budget calculations.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. This model belongs to their cavity band pass filter series, designed for precise frequency selection in radio frequency environments.

Replacement Considerations

Consult Anatech Electronics for direct substitutes. Verify electrical parameters including center frequency, bandwidth, and insertion loss match original specifications before considering alternatives.
