AE220N2268

Overview

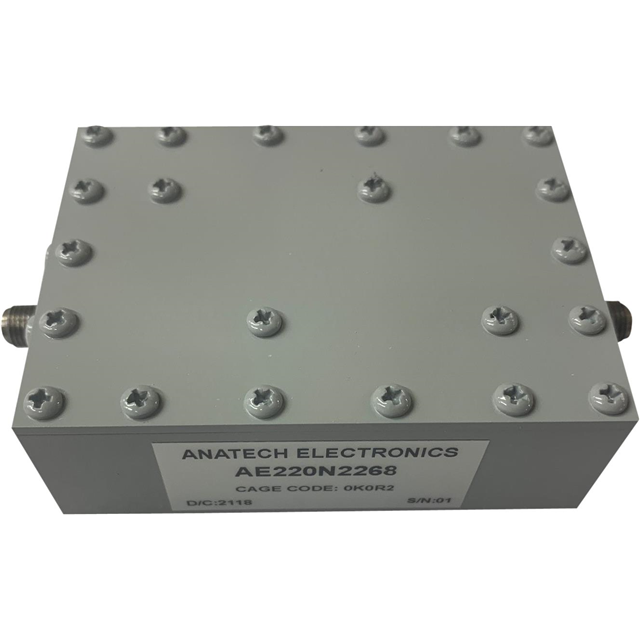

The AE220N2268 is a band stop RF filter manufactured by Anatech Electronics Inc. It features a center frequency of 220 MHz and a bandwidth of 10 MHz. The component is housed in a module package with a maximum height of 0.980 inches (24.89 mm). This device is designed to attenuate signals within its specified notch range while maintaining passband integrity outside the stopband.

Feature Summary

• Provides band stop filtering functionality at a specific radio frequency
• Engineered for precise signal attenuation within a defined notch range
• Constructed as a standalone module for integration into RF systems

Applications

• RF signal processing circuits requiring notch filtering
• Radio frequency interference suppression systems
• Microwave communication equipment components

Procurement Notes

Verify the manufacturer part number AE220N2268 against official Anatech Electronics documentation to confirm specifications. Ensure compatibility with system requirements regarding center frequency, bandwidth, and physical dimensions before procurement. Cross-reference datasheets for accurate electrical parameters and mechanical tolerances.

Selection Notes

Select this component when a fixed 220 MHz band stop filter is required. Consider the 10 MHz bandwidth specification for notch width requirements. Evaluate the module form factor and height constraints for enclosure design. Confirm that the passive filtering characteristics meet the system's isolation needs without active power requirements.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. The company produces various filter types including band stop, low pass, and high pass configurations. This model belongs to their portfolio of specialized RF components designed for precision signal control in electronic applications.

Replacement Considerations

Consult Anatech Electronics engineering database for spec-matched alternatives. Verify that substitute parts maintain identical center frequency and bandwidth specifications. Ensure mechanical footprint compatibility if direct replacement is necessary.
