Product Detailed Parameters
- Description：RF FILTER BAND PASS 2.245GHZ MOD
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：2.245GHz Center
- Bandwidth：90MHz
- Filter Type：Band Pass
- Ripple：1.5dB
- Insertion Loss：1.5dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：3.228" L x 2.205" W (82.00mm x 56.00mm)
- Height (Max)：1.772" (45.00mm)
Download product information
Overview

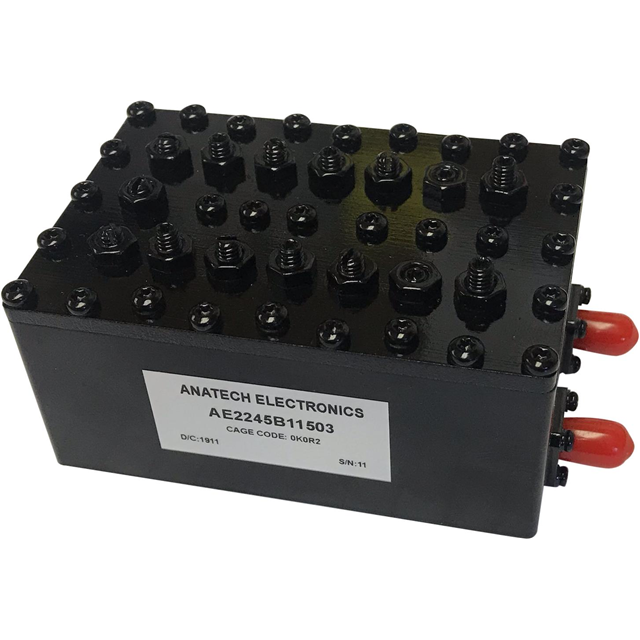

The AE2245B11503 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 2245 MHz (2.245 GHz) with a bandwidth of 90 MHz. The component features an insertion loss of 1.5 dB and utilizes SMA connectors for interface connections. This module is designed for radio frequency applications requiring precise signal filtering within the specified frequency range.
Feature Summary
- Cavity construction for stable RF performance
- Bandpass filtering capability centered at 2245 MHz
- SMA connector interface for standard integration
Applications
- Radio frequency signal processing
- Communication system filtering
- RF module integration
Procurement Notes
Verify the specific datasheet for detailed electrical characteristics and mechanical dimensions before procurement. Confirm connector type and mounting requirements match your system design. Ensure environmental conditions align with the component specifications. Check for any specific handling instructions related to the vacuum sealing and moisture barrier packaging mentioned in distributor listings.
Selection Notes
Select this component when a 2245 MHz center frequency and 90 MHz bandwidth are required. Consider the 1.5 dB insertion loss impact on system sensitivity. Verify that SMA connectors are compatible with existing PCB or cable assemblies. Evaluate the cavity package size against available space constraints in the final assembly.
Part Context
Anatech Electronics Inc. specializes in standard and custom RF filters for military and commercial applications. The AE series represents their cavity bandpass filter line, offering high performance and reliability. This model is part of their catalog of fixed-frequency filters designed for specific RF bands.
Replacement Considerations
Consult official Anatech documentation for direct substitutes. Cross-reference center frequency, bandwidth, and connector types when evaluating alternatives. Ensure replacement components meet identical electrical specifications to maintain system integrity.
