AE2260B11405

Overview

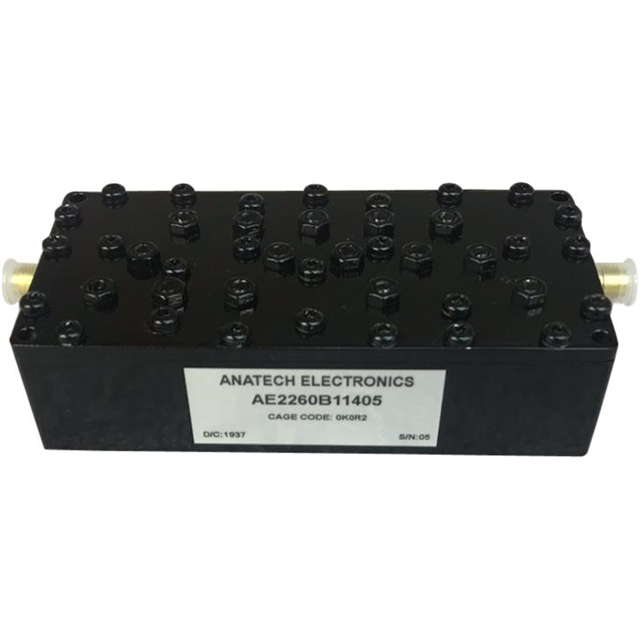

The AE2260B11405 is a cavity band pass filter manufactured by Anatech Electronics Inc., designed for radio frequency applications. It operates at a center frequency of 2.26 GHz with an 80 MHz bandwidth. The component provides high-side rejection greater than 50 dB in the 238-1000 MHz range and maintains a return loss exceeding 50 dB. This hardware serves as a specialized RF filter solution.

Feature Summary

• Cavity construction for stable RF performance
• Band pass filtering capability centered at 2.26 GHz
• High sideband rejection characteristics

Applications

• Radio frequency signal processing
• Microwave communication systems
• RF filter modules

Procurement Notes

Verify the specific datasheet version to confirm exact insertion loss values and physical dimensions, as these parameters are critical for integration. Ensure the operating environment matches the component's thermal and mechanical specifications. Confirm that the 2.26 GHz center frequency aligns precisely with system requirements before procurement.

Selection Notes

Select this component when a fixed 2.26 GHz center frequency and 80 MHz bandwidth are required. Consider the cavity design for robustness in demanding environments. Evaluate the high-side rejection specs against interference levels in the 238-1000 MHz range to ensure adequate signal isolation for the intended application.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters, including standard and custom designs for military and commercial sectors. The company focuses on cavity and suspended stripline technologies. This part belongs to their line of cavity band pass filters, which are engineered for precise frequency selection and noise reduction in complex RF architectures.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
