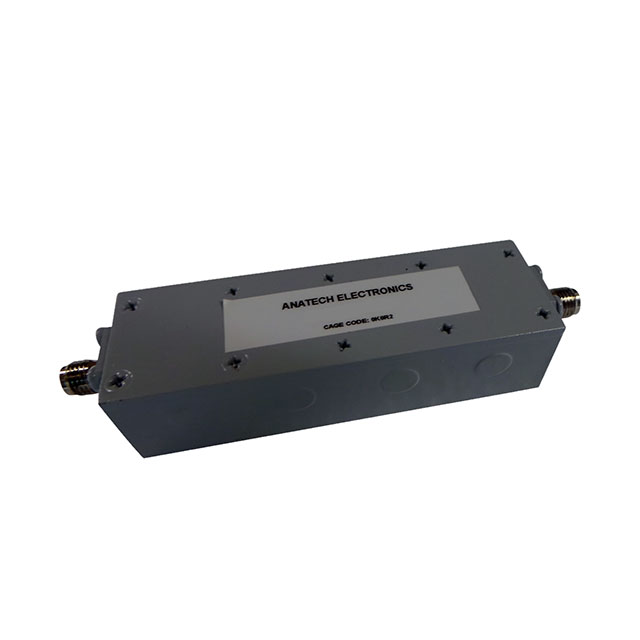

AE2275B10871

$469.20

Description：RF FILTER BAND PASS 2.275GHZ MOD
Series：-
Mfr：Anatech Electronics Inc.
Package：Box

SKU:8947e455be0c Category: RF Filters Brand: Anatech Electronics Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER BAND PASS 2.275GHZ MOD
Series：-
Mfr：Anatech Electronics Inc.
Package：Box
Frequency：2.275GHz Center
Bandwidth：210MHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：3dB
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Size / Dimension：3.900" L x 1.250" W (99.06mm x 31.75mm)
Height (Max)：0.699" (17.75mm)

Download product information

AE2275B10871

Overview

The AE2275B10871 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 2.275 GHz with a bandwidth of 210 MHz. The component features SMA connectors and has a maximum height of 0.699 inches (17.75 mm).

Feature Summary

Cavity construction for stable RF performance
Bandpass filtering capability centered at 2.275 GHz
Integrated SMA connector interfaces

Applications

Radio frequency signal processing systems
Communication equipment requiring specific frequency band selection

Procurement Notes

Verify the exact datasheet version from Anatech Electronics Inc. to confirm mechanical dimensions and electrical specifications. Ensure compatibility with SMA connector types in your system design. Cross-reference part numbers carefully as distributor listings may vary.

Selection Notes

Select this component when a fixed center frequency of 2.275 GHz and 210 MHz bandwidth are required. Consider the physical height constraint of 17.75 mm during enclosure design. Verify that SMA interface standards match existing board layouts.

Part Context

This part belongs to the Anatech Electronics Inc. RF filter portfolio, specifically designed as a cavity bandpass unit. It serves niche applications requiring precise frequency isolation in the microwave range without active components.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Consult Anatech Electronics Inc. directly for potential equivalents or custom modifications.
