AE23000B11559

$508.65

Description：RF FILTER BAND PASS 23GHZ MODULE
Series：-
Mfr：Anatech Electronics Inc.
Package：Box

SKU:363ecb5df928 Category: RF Filters Brand: Anatech Electronics Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER BAND PASS 23GHZ MODULE
Series：-
Mfr：Anatech Electronics Inc.
Package：Box
Frequency：23GHz Center
Bandwidth：6GHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：1dB
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Size / Dimension：1.811" L x 0.492" W (46.00mm x 12.50mm)
Height (Max)：0.276" (7.00mm)

Download product information

AE23000B11559

Overview

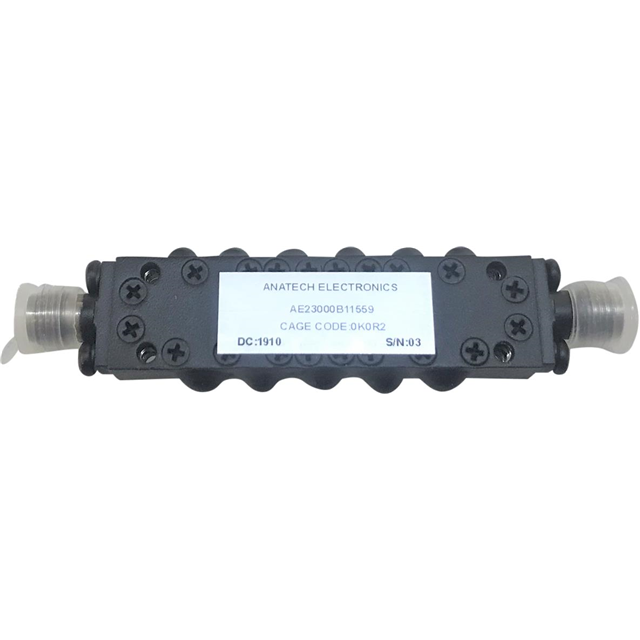

The AE23000B11559 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 23 GHz and provides a bandwidth of 6 GHz. The component features SMA connectors for interface connectivity. This device is designed for radio frequency applications requiring specific frequency selection within the microwave spectrum.

Feature Summary

Cavity construction for stable RF performance
Bandpass filtering characteristic
SMA connector interface

Applications

Radio frequency signal processing
Microwave communication systems
Test and measurement equipment

Procurement Notes

Verify the exact connector type and mounting requirements against your system design before ordering. Confirm that the 23 GHz center frequency and 6 GHz bandwidth align with your specific application needs. Ensure compatibility with existing SMA interfaces in your assembly.

Selection Notes

Select this component when a fixed 23 GHz center frequency with 6 GHz bandwidth is required. The SMA interface suits standard coaxial connections. Consider the cavity construction for environmental stability if operating in demanding conditions.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. The AE23000B11559 belongs to their line of cavity bandpass filters, which are engineered for precise frequency control in high-frequency applications.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Custom designs may be available through the manufacturer if exact specifications cannot be met by standard inventory.
