AE2300B11281

$634.95

Description：RF FILTER BANDPASS 2.3GHZ MODULE
Series：-
Mfr：Anatech Electronics Inc.
Package：Box

SKU:a134fa9bbc34 Category: RF Filters Brand: Anatech Electronics Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER BANDPASS 2.3GHZ MODULE
Series：-
Mfr：Anatech Electronics Inc.
Package：Box
Frequency：2.3GHz Center
Bandwidth：100MHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：1.2dB
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Size / Dimension：5.220" L x 0.990" W (132.59mm x 25.15mm)
Height (Max)：0.950" (24.13mm)

Download product information

AE2300B11281

Overview

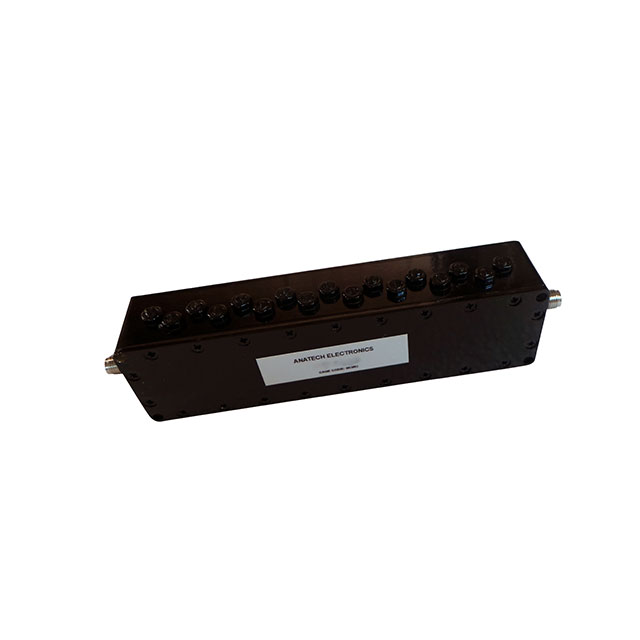

The AE2300B11281 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.3GHz and provides a bandwidth of 100MHz. The component features an insertion loss of 1.2dB and utilizes SMA connectors for interface connections. It is housed in a module package with dimensions of 5.220 inches in length and 0.990 inches in width.

Feature Summary

Cavity construction for stable RF performance
Bandpass filtering capability at 2.3GHz
SMA connector interface

Applications

RF signal processing systems
Microwave communication equipment
Test and measurement instrumentation

Procurement Notes

Verify the specific part number AE2300B11281 against official Anatech Electronics documentation to confirm technical specifications. Ensure compatibility with system requirements regarding center frequency, bandwidth, and connector type before procurement. Cross-reference manufacturer datasheets for accurate dimensional and electrical data.

Selection Notes

Select this component based on its 2.3GHz center frequency and 100MHz bandwidth specifications. Consider the 1.2dB insertion loss and SMA connector interface when designing RF circuits. Verify physical dimensions fit within the intended enclosure constraints.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. The company produces various filter types including bandpass, low pass, and high pass filters for diverse applications.

Replacement Considerations

Consult official Anatech Electronics documentation for verified substitute part numbers. Do not assume generic replacements are compatible without confirming electrical and mechanical specifications.
