AE2350B11562

Overview

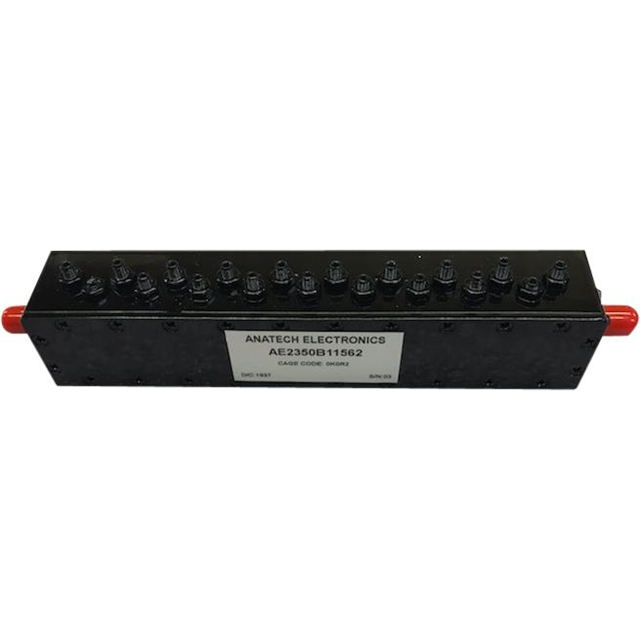

The AE2350B11562 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2350 MHz and provides a bandwidth of 300 MHz, covering a passband range from 2200 MHz to 2500 MHz. The component features SMA connectors for interface connectivity. Electrical performance specifications include a maximum passband insertion loss of 1.0 dB or less.

Feature Summary

• Cavity construction design for stable RF filtering performance
• Band pass configuration centered at 2350 MHz
• Integrated SMA connector interfaces

Applications

• Radio frequency signal processing systems
• Microwave communication infrastructure
• RF test and measurement equipment

Procurement Notes

Verify the specific part number AE2350B11562 against official Anatech Electronics documentation to confirm technical compliance. Ensure that the required SMA connector type and cavity construction align with system integration requirements. Cross-reference datasheet parameters such as insertion loss and bandwidth before finalizing procurement decisions.

Selection Notes

Select this component when a fixed center frequency of 2350 MHz and a 300 MHz bandwidth are required. The cavity design suits applications needing robust RF filtering characteristics. Verify that the SMA interface matches existing circuit board layouts and that the insertion loss specification meets system sensitivity thresholds.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. This model belongs to their cavity band pass filter series, engineered for precise frequency selection in radio frequency environments. The company maintains ISO 9001:2015 certification for its manufacturing processes.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Custom design services may be requested if exact specifications cannot be met by existing inventory.
