AE2400H9903

Overview

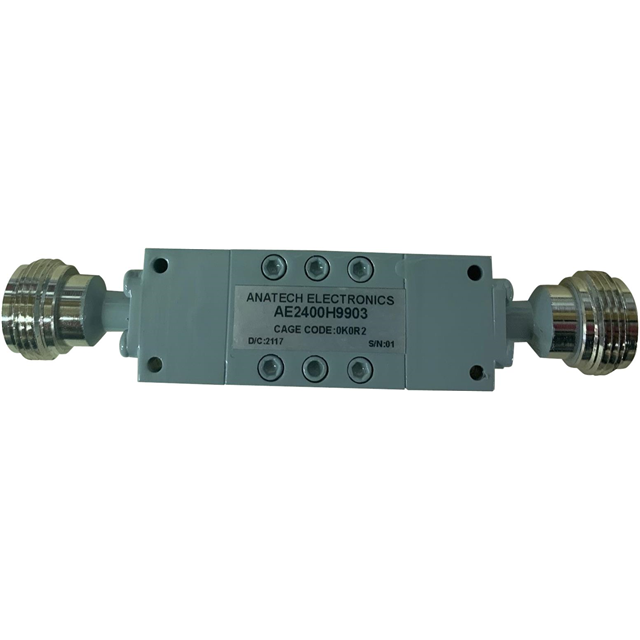

The AE2400H9903 is a high-pass RF filter module manufactured by Anatech Electronics Inc. It features a cutoff frequency of 2.4 GHz and operates within a bandwidth extending to 6 GHz. The component exhibits an insertion loss of 1 dB in the passband and provides 40 dB of rejection at 800 MHz. Designed for robust performance, it supports a power handling capacity of 5 W. The unit is constructed as a chassis-mountable module, suitable for integration into radio frequency systems requiring precise signal filtering above the specified threshold.

Feature Summary

• High-pass filtering capability with a defined 2.4 GHz cutoff frequency
• Low insertion loss of 1 dB ensuring efficient signal transmission
• Significant attenuation of 40 dB at 800 MHz for effective noise rejection
• Chassis-mountable module design for secure installation

Applications

• Radio frequency signal processing systems
• Microwave communication infrastructure
• Test and measurement equipment requiring high-frequency filtering

Procurement Notes

Verify the specific mechanical dimensions and mounting hole configurations against your chassis requirements before procurement. Confirm that the 5 W power rating aligns with your system's thermal management capabilities. Ensure the 2.4 GHz cutoff frequency meets your application's spectral needs. Check for any required accessories or mounting hardware not included in the standard module package. Validate compatibility with your existing RF interconnects.

Selection Notes

Select this component when a high-pass response starting at 2.4 GHz is required. Consider the 1 dB insertion loss for minimal signal degradation in the passband. Evaluate the 40 dB rejection at 800 MHz if lower frequency interference suppression is critical. The module form factor dictates chassis mounting availability. Compare power handling against expected signal levels to ensure reliability under operational stress.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. The company produces various filter types including high-pass, low-pass, band-pass, and notch filters. This module belongs to their line of precision RF components designed for demanding communication and testing environments. Their products are engineered for consistent performance across wide frequency ranges.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Custom designs may be possible through manufacturer engineering services. Verify electrical specifications closely if considering alternative high-pass filters from other manufacturers.
