Product Detailed Parameters
- Description：RF FILTER BAND STOP 2.441GHZ MOD
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：2.441GHz Center
- Bandwidth：83.5MHz
- Filter Type：Band Stop
- Ripple：-
- Insertion Loss：2dB
- Mounting Type：Chassis Mount
- Package / Case：Module
- Size / Dimension：14.803" L x 1.673" W (376.00mm x 42.50mm)
- Height (Max)：1.417" (36.00mm)
Download product information
Overview

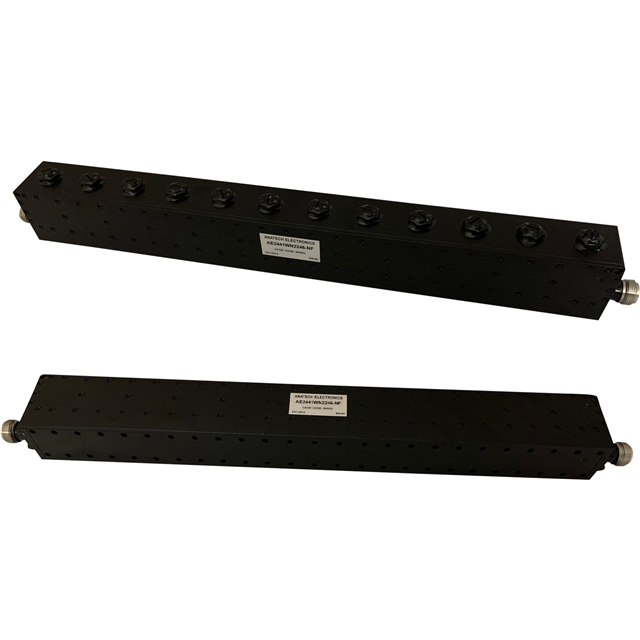

The AE2441WN2246-NF is a waveguide band stop RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.441 GHz and provides a bandwidth of 83.5 MHz. The component features an insertion loss of 2 dB. Its maximum height is specified as 1.417 inches (36.00 mm). This module is designed for radio frequency applications requiring specific notch filtering characteristics within the microwave spectrum.
Feature Summary
- Waveguide construction for high-performance RF filtering
- Band stop topology targeting specific interference frequencies
- Compact physical profile suitable for modular integration
Applications
- Radio frequency signal processing systems
- Microwave communication infrastructure
- Test and measurement equipment requiring frequency rejection
Procurement Notes
Verify the exact part number suffix against official manufacturer documentation to ensure correct specifications. Confirm mechanical dimensions and interface requirements match system constraints. Request current datasheets for updated electrical parameters. Validate compliance with relevant industry standards before procurement. Ensure supply chain authenticity through authorized channels.
Selection Notes
Evaluate the center frequency and bandwidth against system interference profiles. Assess insertion loss impact on overall signal integrity. Consider physical size constraints relative to available mounting space. Compare performance metrics with alternative waveguide solutions. Verify compatibility with existing connector types and housing designs.
Part Context
Anatech Electronics Inc. specializes in designing and manufacturing RF and microwave filters. The company offers various filter types including band stop, low pass, and high pass configurations. This product belongs to their waveguide filter series, which utilizes suspended stripline or similar waveguide technologies for robust performance in demanding RF environments.
Replacement Considerations
AE2441WN2219 is a related waveguide band stop filter from the same manufacturer. Verify if its attenuation and passband specifications meet application requirements. Cross-reference mechanical dimensions to ensure interchangeability without redesigning mounting structures.
