AE2450NS2197

Overview

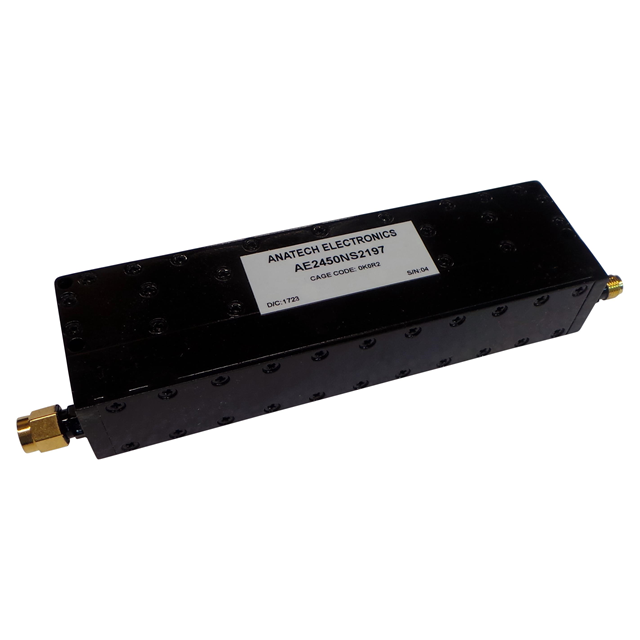

The AE2450NS2197 is a passive radio-frequency band stop filter manufactured by Anatech Electronics Inc. It features a center frequency of 2.45GHz and a bandwidth of 100MHz. The device provides an insertion loss of 3dB and utilizes SMA connectors for interface. Designed as a chassis-mount module, it operates within the RF spectrum to suppress specific signal frequencies.

Feature Summary

• Provides band stop filtering functionality at a designated center frequency
• Utilizes SMA connectors for secure RF interfacing
• Constructed as a chassis-mount module for stable installation

Applications

• RF signal processing systems requiring frequency suppression
• Wireless communication infrastructure operating near 2.45GHz
• Test and measurement equipment needing notch filtering

Procurement Notes

Verify component authenticity through authorized Anatech Electronics Inc. channels or certified distributors. Confirm RoHS compliance status matches project requirements. Ensure SMA connector compatibility with existing system interfaces. Validate chassis-mount dimensions against enclosure specifications prior to procurement.

Selection Notes

Select this model when a fixed 2.45GHz notch filter is required. Consider the 100MHz bandwidth specification for interference rejection needs. Evaluate the 3dB insertion loss impact on system sensitivity. Verify that the chassis-mount form factor fits the available hardware space.

Part Context

This component belongs to the Anatech Electronics Inc. RF filter series. It is categorized as a passive signal-processing part designed for radio-frequency applications. The product maintains active status in the manufacturer's portfolio, indicating ongoing availability and support for integration into electronic designs.

Replacement Considerations

Consult official Anatech documentation for verified substitute part numbers. Do not assume cross-compatibility with generic filters due to specific bandwidth and connector requirements.
