AE24840WB11805

Overview

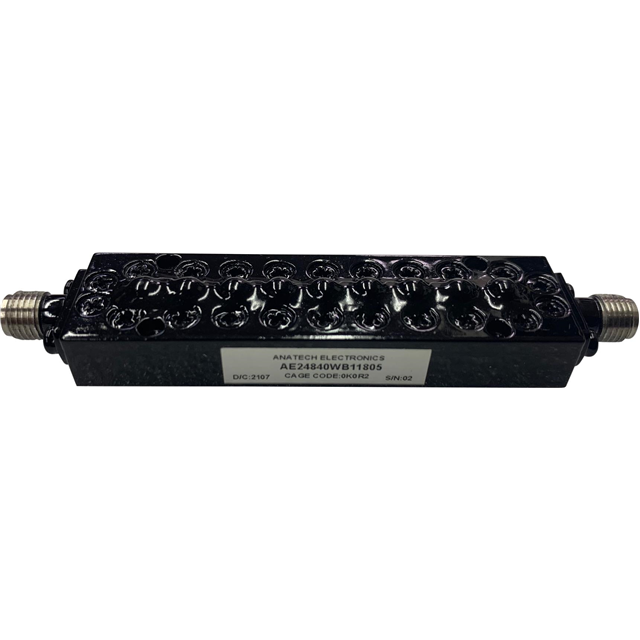

The AE24840WB11805 is a waveguide bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 24.84 GHz and provides a bandwidth of 1 GHz. The module features SMA connectors for interface connectivity and exhibits an insertion loss of 1.5 dB.

Feature Summary

• Waveguide construction for high-frequency performance
• Bandpass filtering capability centered at 24.84 GHz
• Integrated SMA connector interfaces

Applications

• Radio frequency signal processing
• Microwave communication systems
• RF filter modules requiring specific center frequencies

Procurement Notes

Verify the exact connector type and mechanical dimensions against your system requirements before procurement. Confirm that the SMA interface compatibility matches your existing cabling infrastructure. Ensure the waveguide form factor fits within your designated equipment space constraints to avoid integration issues during installation.

Selection Notes

Select this component when a fixed 24.84 GHz center frequency is required. The 1 GHz bandwidth defines the operational passband range. Consider the 1.5 dB insertion loss impact on system signal integrity. The SMA connector choice dictates mating cable availability and interface standards for the final assembly design.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters, including bandpass, low pass, and notch designs. This model belongs to their waveguide filter series, designed for applications demanding precise frequency selection in the microwave spectrum. The company focuses on custom and standard filter solutions for industrial and commercial use.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Verify if other Anatech models offer similar center frequencies or bandwidths if direct replacement is unavailable.
