AE250B9668-S

Overview

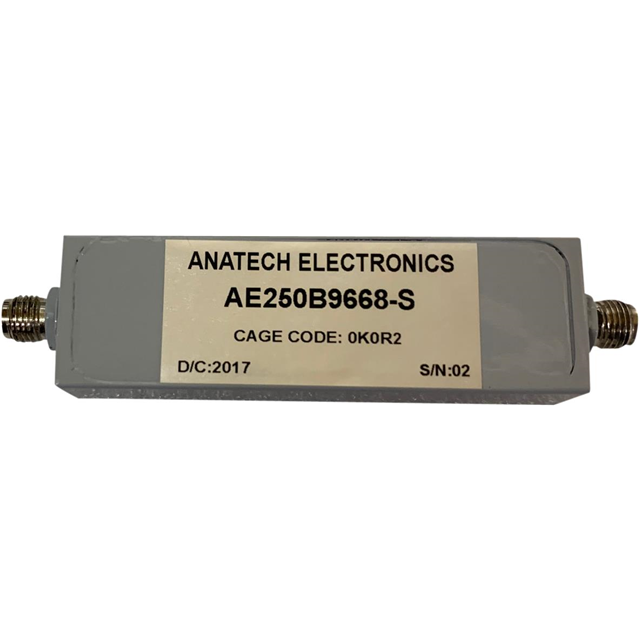

The AE250B9668-S is a bandpass RF filter module manufactured by Anatech Electronics Inc. It operates with a center frequency of 250 MHz and provides a bandwidth of 100 MHz. The component features an insertion loss of 2 dB and utilizes SMA connectors for interface connections. This LC-based filter is designed for radio frequency applications requiring specific signal selection capabilities within the defined frequency range.

Feature Summary

• Bandpass filtering capability centered at 250 MHz
• 100 MHz operational bandwidth
• Low insertion loss characteristic of 2 dB
• SMA connector interface for integration

Applications

• Radio frequency signal processing systems
• Communication equipment requiring 250 MHz band selection
• Test and measurement instrumentation filters

Procurement Notes

Verify the exact datasheet version from Anatech Electronics Inc. to confirm mechanical dimensions and electrical tolerances. Ensure SMA connector compatibility with system interfaces. Check RoHS compliance status if required for specific manufacturing standards. Confirm package type matches the box packaging description found in distributor listings.

Selection Notes

Select this module when a fixed 250 MHz center frequency with 100 MHz bandwidth is required. The 2 dB insertion loss makes it suitable for applications where signal attenuation must be minimized. Verify that the SMA interface aligns with existing board or cable infrastructure. Consider the physical dimensions of 50.80mm x 12.70mm for enclosure space planning.

Part Context

This component belongs to the Anatech Electronics Inc. RF filter series, specifically designed as an LC bandpass module. It is distinct from other models in the lineup by its specific 250 MHz center frequency and 100 MHz bandwidth configuration. The product is categorized under RF filters and is intended for professional electronic integration rather than consumer-grade use.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult Anatech Electronics Inc. directly for equivalent components or cross-reference options based on specific electrical requirements.
