Product Detailed Parameters
- Description：RF FILTER HIGH PASS 250MHZ 6DIP
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：250MHz (Cutoff)
- Bandwidth：450MHz
- Filter Type：High Pass
- Ripple：-
- Insertion Loss：0.6dB
- Mounting Type：Through Hole
- Package / Case：6-DIP Module
- Size / Dimension：0.750" L x 0.500" W (19.05mm x 12.70mm)
- Height (Max)：1.229" (31.21mm)
Download product information
Overview

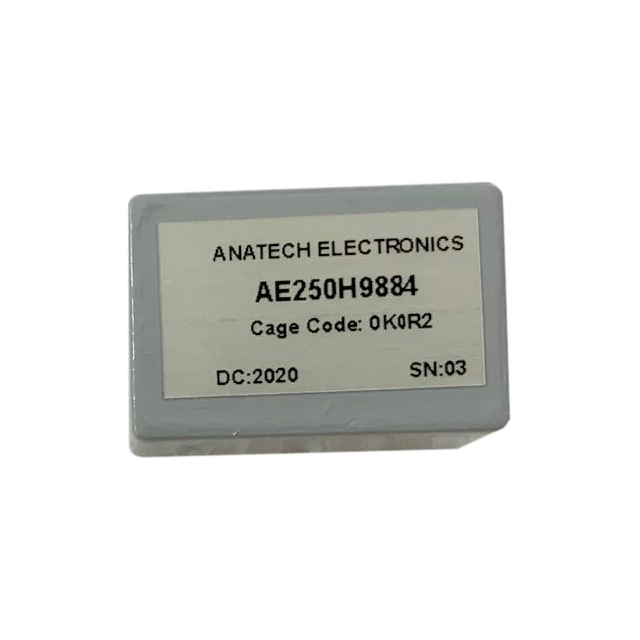

The AE250H9884 is a high-pass radio frequency filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 250MHz and a bandwidth of 450MHz. The component exhibits an insertion loss of 0.6dB. It is housed in a 6-DIP module package, designed for signal filtering applications where frequencies below the cutoff threshold require attenuation.
Feature Summary
- High-pass filtering capability with specified cutoff frequency
- Low insertion loss characteristic for signal integrity
- DIP module packaging for integration
Applications
- Radio frequency signal conditioning
- Attenuation of low-frequency interference
- RF circuit filtering
Procurement Notes
Verify the specific datasheet version and electrical tolerances directly with Anatech Electronics Inc. or authorized distributors before procurement. Confirm that the 6-DIP package dimensions and pinout match your PCB layout requirements. Ensure the operating temperature range and power handling capabilities align with your system design specifications to guarantee reliable performance.
Selection Notes
Select this component when a fixed 250MHz high-pass response is required. Consider the 0.6dB insertion loss impact on overall system gain. Evaluate the 6-DIP form factor against available board space. Compare alternative filters if variable cutoff frequencies or different impedance matching are necessary for the specific application environment.
Part Context
This part belongs to the Anatech Electronics RF filter series. It is categorized as a passive RF component used in communication systems. The manufacturer specializes in microwave and RF filters. This specific model addresses needs for rejecting lower frequency noise while passing higher frequency signals in professional electronic equipment.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult the manufacturer for direct equivalents or cross-reference options based on identical electrical specifications and package constraints.
