AE2600B10759

Overview

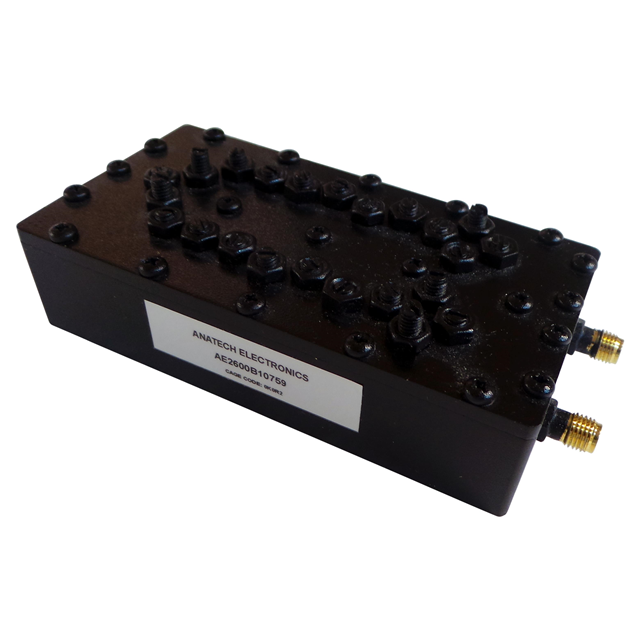

The AE2600B10759 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.6 GHz and provides a bandwidth of 600 MHz, covering the 2300-2900 MHz range. The component features an insertion loss of 1 dB and utilizes SMA connectors for interface. Designed for chassis mounting, this module serves as a specialized radio frequency filtering solution within its specified operational parameters.

Feature Summary

• Cavity construction for stable RF performance
• SMA connector interface
• Chassis mounting configuration

Applications

• Radio frequency signal processing
• Communication system filtering
• RF module integration

Procurement Notes

Verify the specific datasheet version and RoHS compliance status before procurement, as availability information varies across distributors. Confirm that the SMA connector type and chassis mounting dimensions match your system requirements. Ensure the operating temperature range meets your environmental specifications. Cross-reference the part number with official manufacturer documentation to confirm current production status and technical accuracy.

Selection Notes

Select this component when a fixed 2.6 GHz center frequency with 600 MHz bandwidth is required. The 1 dB insertion loss specification suits applications prioritizing signal integrity over minimal attenuation. The chassis mount design necessitates appropriate enclosure planning. Verify impedance matching and rejection characteristics against system specifications to ensure compatibility with adjacent circuit stages.

Part Context

Anatech Electronics Inc. produces specialized RF filters, including cavity bandpass models like the AE4000B6454. These components typically feature through-hole or chassis mounting options and operate within defined temperature ranges. The AE2600B10759 belongs to this family of discrete RF filtering modules designed for specific frequency bands in communication infrastructure.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Evaluate alternative cavity bandpass filters from Anatech or other manufacturers based on matching center frequency, bandwidth, and connector type specifications.
