AE260L9086

Overview

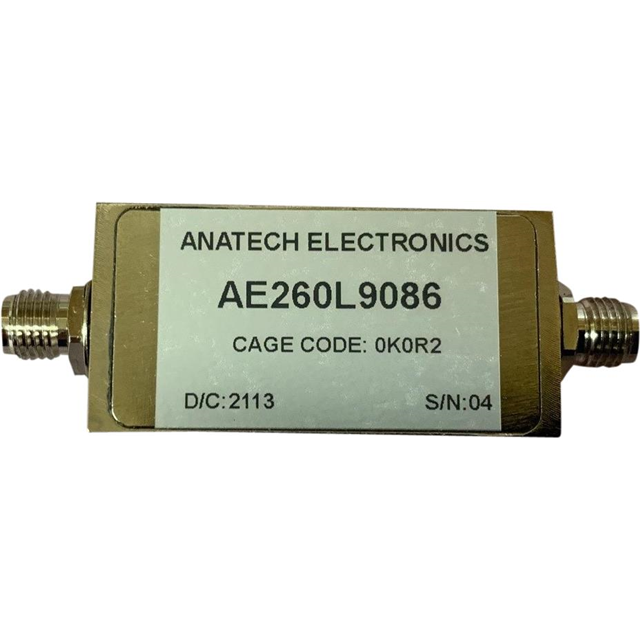

The AE260L9086 is a low-pass RF filter module manufactured by Anatech Electronics Inc. It features SMA connectors and utilizes an LC design. The component has a cutoff frequency of 260 MHz and a passband from DC to 200 MHz. Insertion loss is less than 0.5 dB, with attenuation greater than 15 dB in the stopband. Isolation exceeds 60 dB at frequencies between 300-1000 MHz.

Feature Summary

• LC low-pass filter architecture
• SMA connector interface
• High isolation performance

Applications

• RF signal filtering
• Radio frequency systems
• Microwave applications

Procurement Notes

Verify the specific datasheet version for the AE260L9086 to confirm exact electrical tolerances and mechanical dimensions before integration. Ensure compatibility with SMA connector types used in the target assembly. Cross-reference manufacturer documentation for any updates regarding material composition or environmental ratings.

Selection Notes

Select this component when a low-pass response with a 260 MHz cutoff is required. The LC topology offers specific attenuation characteristics suitable for RF environments. Verify that the SMA interface matches existing system interconnects. Confirm that the insertion loss and isolation metrics meet the specific circuit requirements.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. The AE260L9086 belongs to their line of LC lowpass filters. This series includes various models with different cutoff frequencies and bandwidth specifications designed for radio frequency applications.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data.
