AE26NS2040

Overview

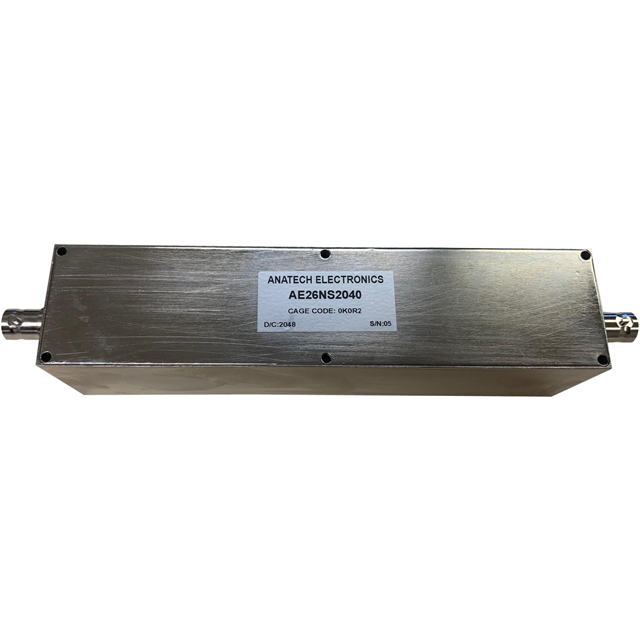

The AE26NS2040 is a bandstop or notch filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 26 MHz with a bandwidth of 2.6 MHz and an insertion loss of 1 dB. The component is designed as an in-line module featuring BNC connectors for signal interfacing.

Feature Summary

• Provides bandstop filtering capability to attenuate specific frequencies
• Designed as an in-line module for direct circuit integration
• Utilizes BNC connectors for standardized RF connections

Applications

• Radio frequency signal processing
• Microwave system interference suppression
• Test and measurement equipment filtering

Procurement Notes

Verify the exact specifications against the official product datasheet before procurement. Confirm that the BNC connector type and in-line module form factor align with your system requirements. Ensure the center frequency and bandwidth meet the specific application needs for effective signal filtering.

Selection Notes

Select this component when a fixed 26 MHz bandstop filter is required. Consider the 2.6 MHz bandwidth and 1 dB insertion loss characteristics for compatibility with the target RF system. Verify that the BNC interface matches existing infrastructure.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of standard and custom radio frequency and microwave filters. The company serves both military and commercial sectors, offering solutions such as the AE26NS2040 for precise frequency control applications.

Replacement Considerations

Consult the manufacturer's documentation for verified substitute part numbers. Cross-reference technical specifications to ensure functional equivalence in bandstop performance and connector types.
