AE2725B11625

$528.87

Description：RF FILTER BAND PASS 2.725GHZ MOD
Series：-
Mfr：Anatech Electronics Inc.
Package：Box

SKU:48eb9345053a Category: RF Filters Brand: Anatech Electronics Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER BAND PASS 2.725GHZ MOD
Series：-
Mfr：Anatech Electronics Inc.
Package：Box
Frequency：2.725GHz Center
Bandwidth：20MHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：3dB
Mounting Type：Chassis Mount
Package / Case：Module
Size / Dimension：4.685" L x 3.189" W (119.00mm x 81.00mm)
Height (Max)：1.181" (30.00mm)

Download product information

AE2725B11625

Overview

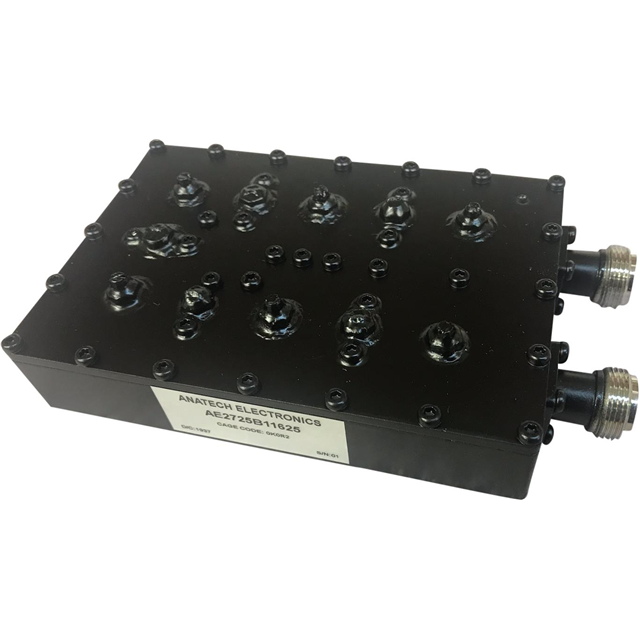

The AE2725B11625 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.725 GHz and provides a bandwidth of 20 MHz, covering the range from 2715 MHz to 2735 MHz. The component is designed as a module for radio frequency applications.

Feature Summary

Constructed as a cavity bandpass filter for stable RF performance
Designed in a modular format for integration into radio frequency systems

Applications

Radio frequency signal processing
Military communication systems
Commercial RF infrastructure

Procurement Notes

Verify the specific electrical parameters against the official manufacturer datasheet before procurement. Confirm that the cavity construction and modular form factor align with your system's mechanical constraints. Ensure the 2.725 GHz center frequency matches your design requirements precisely.

Selection Notes

Select this component when a dedicated cavity bandpass filter is required for the 2.725 GHz band. Consider its modular design for ease of integration into larger RF assemblies. Evaluate its suitability for both military and commercial environments based on the manufacturer's specifications.

Part Context

Anatech Electronics Inc. specializes in manufacturing standard and custom radio frequency filters and microwave components. Their product portfolio serves both military and commercial sectors, providing high-performance solutions for complex RF applications requiring precise filtering characteristics.
