Description：RF FILTER HIGH PASS 2.75GHZ MOD
Series：-
Mfr：Anatech Electronics Inc.
Package：Box

SKU:9be3b41ec22e Category: RF Filters Brand: Anatech Electronics Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER HIGH PASS 2.75GHZ MOD
Series：-
Mfr：Anatech Electronics Inc.
Package：Box
Frequency：2.75GHz (Cutoff)
Bandwidth：13.25GHz
Filter Type：High Pass
Ripple：-
Insertion Loss：2dB
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Size / Dimension：1.772" L x 1.181" W (45.00mm x 30.00mm)
Height (Max)：0.394" (10.00mm)

Download product information

AE2750SSH6552

Overview

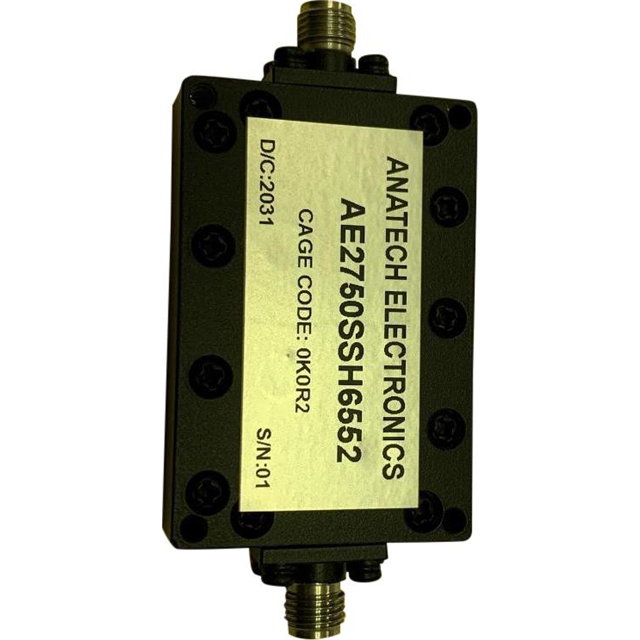

The AE2750SSH6552 is a suspended stripline high-pass RF filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 2.75GHz and operates within a passband from 2.75GHz to 16GHz. The component utilizes SMA connectors for interface connectivity. Electrical specifications include a maximum passband insertion loss of 2.0dB in the 2.75–2.95GHz range and a rejection level of 60dB. The unit has a maximum height of 0.394 inches (10.00mm) and supports a power rating of 15W.

Feature Summary

Suspended stripline construction for stable RF performance
High-pass filtering with defined cutoff at 2.75GHz
Broad operational bandwidth extending to 16GHz
Integrated SMA connector interfaces

Applications

RF signal conditioning in microwave systems
Filtering applications requiring high-frequency passbands
Test and measurement equipment signal paths

Procurement Notes

Verify part authenticity through authorized Anatech Electronics channels or certified distributors. Confirm that the specific ordering suffix matches the required electrical tolerances and connector types. Request official datasheets to validate insertion loss and rejection parameters against project requirements. Ensure handling procedures comply with ESD standards for sensitive RF components.

Selection Notes

Select this component when a high-pass response starting at 2.75GHz is required up to 16GHz. The suspended stripline design offers low insertion loss characteristics suitable for precision applications. Consider the 15W power rating and SMA interface compatibility during system integration planning. Evaluate physical dimensions against available chassis space constraints.

Part Context

This model belongs to Anatech Electronics' suspended stripline filter series, designed for microwave frequencies. The company specializes in custom and standard RF filters, maintaining ISO 9001:2015 certification. This specific part represents a fixed-frequency high-pass solution within their broader portfolio of bandpass, lowpass, and notch filters.
