AE27B6761

Overview

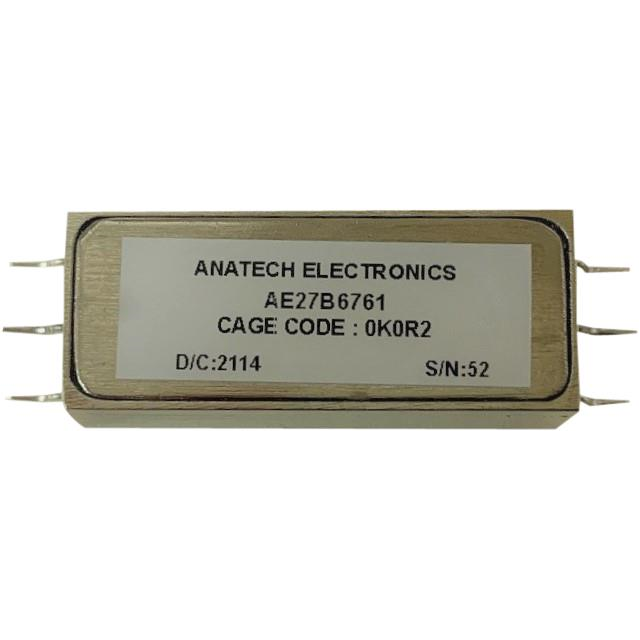

The AE27B6761 is a bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 27 MHz and provides a bandwidth of 20 MHz, covering the range from 20 to 40 MHz. The component exhibits an insertion loss of 4 dB. It is housed in a 6-SMD module package, designed for surface-mount integration into radio frequency circuits requiring specific frequency selection.

Feature Summary

• Bandpass filtering capability centered at 27 MHz
• Surface-mount 6-SMD module construction

Applications

• Radio frequency signal processing
• Communication system frequency selection

Procurement Notes

Verify the exact datasheet specifications against the manufacturer's official documentation before procurement. Confirm that the 6-SMD package dimensions and pinout align with your PCB layout requirements. Ensure the 4 dB insertion loss meets your system's power budget constraints. Cross-reference the part number AE27B6761 with authorized distributors to confirm current availability and authenticity.

Selection Notes

Select this component when a fixed 27 MHz center frequency with 20 MHz bandwidth is required. The 4 dB insertion loss should be evaluated against system sensitivity needs. The 6-SMD form factor dictates the physical footprint on the printed circuit board. Consider thermal management and mounting stability associated with surface-mount modules in the final design.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. This model belongs to their line of bandpass filters designed for precise frequency control. The company focuses on manufacturing components for communication and electronic systems, offering various filter types tailored to specific frequency ranges and performance criteria.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
