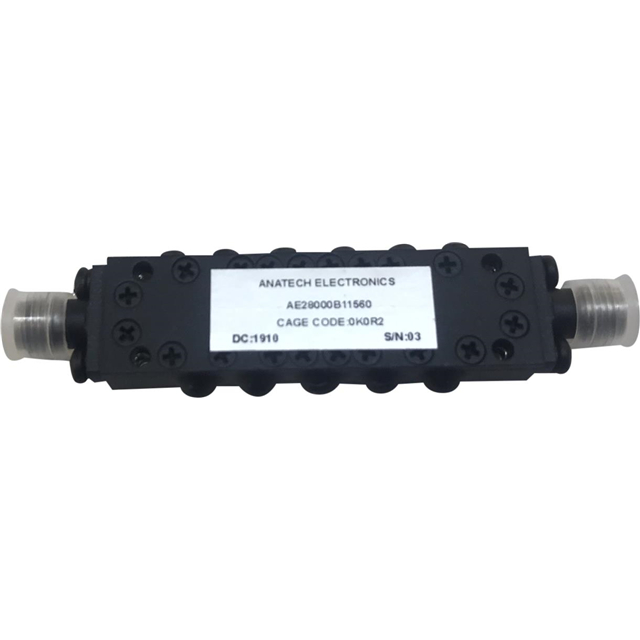

AE28000B11560

$677.16

Description：RF FILTER BAND PASS 28.5GHZ MOD
Series：-
Mfr：Anatech Electronics Inc.
Package：Box

SKU:35ac3fc2db15 Category: RF Filters Brand: Anatech Electronics Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER BAND PASS 28.5GHZ MOD
Series：-
Mfr：Anatech Electronics Inc.
Package：Box
Frequency：28.5GHz Center
Bandwidth：7GHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：1dB
Mounting Type：Chassis Mount
Package / Case：Module
Size / Dimension：1.772" L x 0.669" W (45.00mm x 17.00mm)
Height (Max)：0.276" (7.00mm)

Download product information

AE28000B11560

Overview

The AE28000B11560 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 28.5GHz and provides a bandwidth of 7GHz. The component features an insertion loss of 1dB and is housed in a module package designed for chassis mounting.

Feature Summary

Cavity construction for high-performance RF filtering
Bandpass configuration centered at 28.5GHz
Chassis mounting design for secure installation

Applications

Radio frequency signal processing
Microwave communication systems
Test and measurement equipment

Procurement Notes

Verify the specific part number AE28000B11560 against official Anatech Electronics documentation to confirm technical specifications. Ensure compatibility with chassis mounting requirements and 28.5GHz operational parameters before procurement.

Selection Notes

Select this component when a 28.5GHz center frequency and 7GHz bandwidth are required. Consider the 1dB insertion loss and module form factor for integration into chassis-mounted RF systems requiring cavity filter performance.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters, including bandpass, low pass, and high pass designs. The company offers custom engineering solutions and maintains ISO 9001:2015 certification for manufacturing quality.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Consult manufacturer engineering databases for potential spec-matched alternatives if direct replacement is unavailable.
