AE2800N2250

Overview

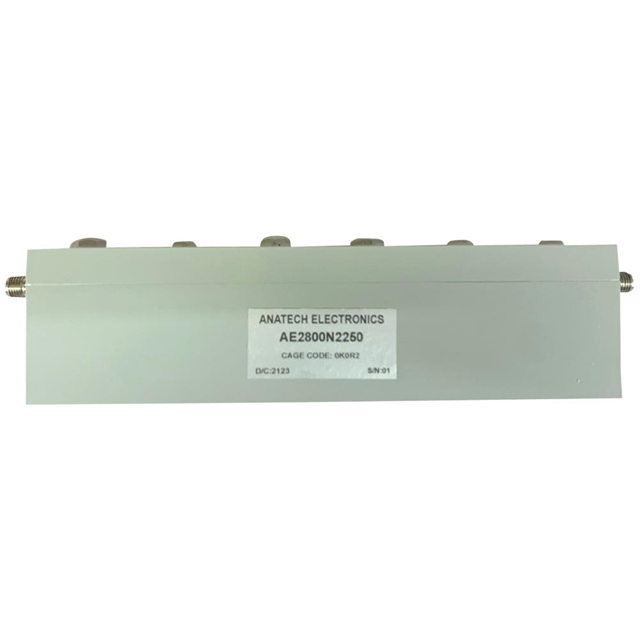

The AE2800N2250 is a cavity bandstop RF filter module manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.8 GHz and features a bandwidth of 50 MHz. Designed as a discrete module, this component functions as a notch filter to reject specific radio frequency signals within its designated stopband.

Feature Summary

• Cavity construction for high performance
• Bandstop filtering capability
• Module form factor

Applications

• Radio frequency signal processing
• Interference rejection systems
• Military communication equipment
• Commercial RF infrastructure

Procurement Notes

Verify the exact center frequency and bandwidth specifications against your system requirements before ordering. Confirm that the module package type meets your mechanical integration needs. Ensure compatibility with your existing RF interface standards. Request official datasheets from authorized distributors to validate technical parameters. Check for any specific handling or installation guidelines provided by the manufacturer.

Selection Notes

Select this component when a fixed 2.8 GHz notch filter is required. Consider the 50 MHz bandwidth relative to your signal spectrum. Evaluate the cavity module size against available space. Compare insertion loss and rejection levels if detailed data is available. Ensure the operating temperature range matches your environment.

Part Context

Anatech Electronics Inc. specializes in standard and custom RF filters for military and commercial applications. The AE series includes tunable and fixed filters across various frequency ranges. This model represents a fixed cavity bandstop solution within their portfolio.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Consult the manufacturer for direct equivalents or updated series replacements.
