AE280B10997-SF

Overview

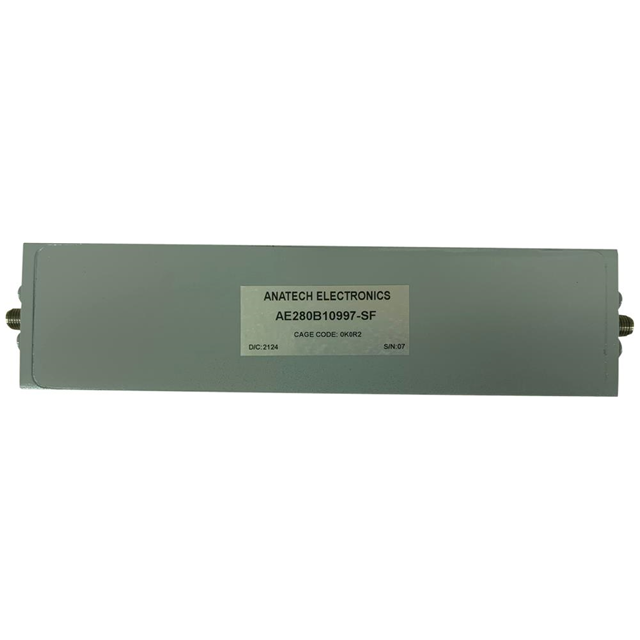

The AE280B10997-SF is a band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 280MHz and provides an 80MHz bandwidth, covering the 240-320 MHz range. The component features a maximum insertion loss of 1.5dB and utilizes SMA connectors for interface. It is supplied in a module package configuration.

Feature Summary

• Band pass filtering capability within the 240-320 MHz frequency range
• SMA connector interface for signal transmission
• Module form factor design

Applications

• Radio frequency signal processing
• Communication system filtering
• RF module integration

Procurement Notes

Verify the specific datasheet for the AE280B10997-SF to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with SMA connector types in your assembly. Check for RoHS compliance status if required by your manufacturing standards. Confirm lead-free certification details directly from the manufacturer documentation before finalizing procurement decisions.

Selection Notes

Select this component when a fixed 280MHz center frequency with 80MHz bandwidth is required. The 1.5dB insertion loss specification suits applications where moderate signal attenuation is acceptable. The SMA interface dictates connector compatibility requirements. Verify that the module package fits within the designated physical space constraints of the target equipment design.

Part Context

This part belongs to the Anatech Electronics Inc. RF filter series. It is designed as a discrete band pass filter module. The product line focuses on radio frequency applications requiring specific frequency selection characteristics. The model number indicates its primary operational frequency parameters.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific component. Cross-referencing requires matching the 280MHz center frequency, 80MHz bandwidth, and SMA interface specifications exactly.
