AE28889B11676

Overview

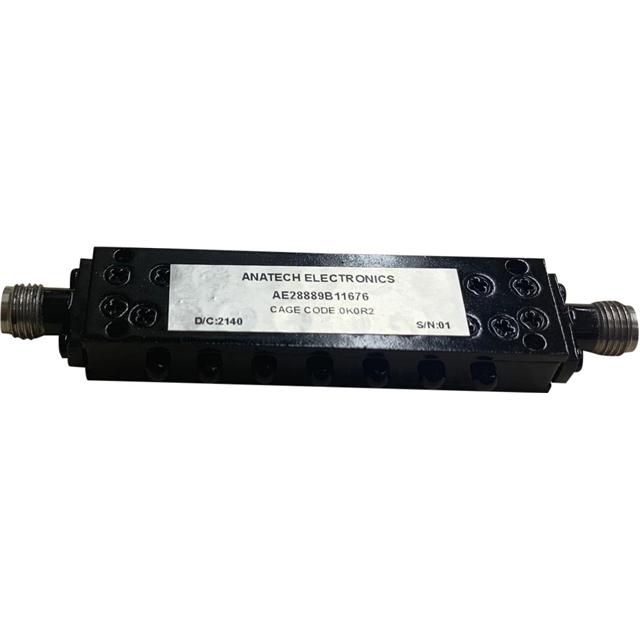

The AE28889B11676 is a band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 28.889 GHz and provides a bandwidth of 14.222 GHz. The component features an insertion loss of 2.5 dB. This module is designed for radio frequency applications requiring specific spectral filtering characteristics within the microwave spectrum.

Feature Summary

• Band pass filtering capability centered at 28.889 GHz
• Defined operational bandwidth of 14.222 GHz
• Module form factor for integration

Applications

• Radio frequency signal processing
• Microwave communication systems
• Spectral filtering in RF circuits

Procurement Notes

Verify the exact center frequency, bandwidth, and insertion loss specifications against official Anatech Electronics documentation before procurement. Confirm mechanical dimensions and interface requirements to ensure compatibility with existing system designs. Request current datasheets to validate performance parameters under intended operating conditions.

Selection Notes

Select this component when a band pass filter with a 28.889 GHz center frequency and 14.222 GHz bandwidth is required. Consider the 2.5 dB insertion loss impact on system gain. Ensure the module form factor fits the available space in the RF chain. Validate that the frequency range aligns with the target application's spectral needs.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. The company produces standard and custom components for commercial, aerospace, and defense sectors. The AE28889B11676 represents their capability in high-frequency band pass filter solutions.

FAQ

What is the center frequency of the AE28889B11676?

The center frequency is 28.889 GHz.

What is the bandwidth of this filter?

The bandwidth is 14.222 GHz.
