AE2950B11707

Overview

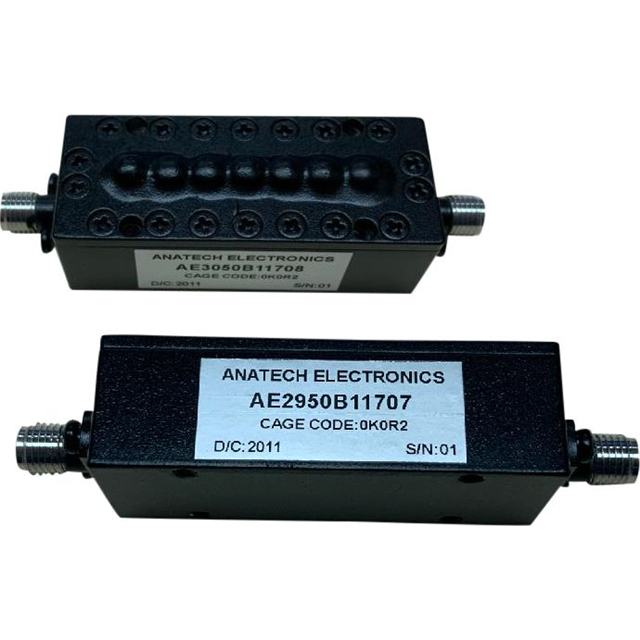

The AE2950B11707 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2950 MHz and provides a bandwidth of 100 MHz, covering the passband range from 2900 to 3000 MHz. The component features SMA female connectors for module integration. Key electrical specifications include a maximum insertion loss of 0.7 dB and a maximum Voltage Standing Wave Ratio (VSWR) of 1.3:1.

Feature Summary

• Cavity construction for stable RF filtering performance
• SMA female connector interface for modular connectivity
• Defined 100 MHz bandwidth centered at 2950 MHz

Applications

• Radio frequency signal processing modules
• Communication system frequency selection
• RF test and measurement equipment

Procurement Notes

Verify the specific datasheet version when ordering, as technical parameters such as VSWR or insertion loss may be subject to revision. Confirm that the SMA connector type matches your system requirements. Ensure environmental conditions align with the manufacturer's operational limits. Cross-reference the part number with official Anatech documentation to confirm current availability and specification accuracy before finalizing procurement decisions.

Selection Notes

Select this component when a fixed 100 MHz bandwidth at 2950 MHz is required. The low insertion loss of 0.7 dB makes it suitable for applications where signal integrity is critical. The 1.3:1 VSWR indicates good impedance matching. Consider the physical size and mounting requirements associated with cavity filters compared to planar alternatives. Ensure the SMA interface compatibility with existing PCB or cable assemblies.

Part Context

Anatech Electronics Inc. specializes in high-performance RF components, including filters and duplexers. The AE2950B11707 belongs to their cavity filter series, designed for robust performance in demanding radio frequency environments. These components are typically used in professional communication infrastructure rather than consumer electronics due to their specialized design and construction methods.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. When evaluating alternatives, ensure the replacement maintains the 2950 MHz center frequency, 100 MHz bandwidth, and SMA connector configuration. Verify that electrical parameters such as insertion loss and VSWR meet or exceed the original specifications.
